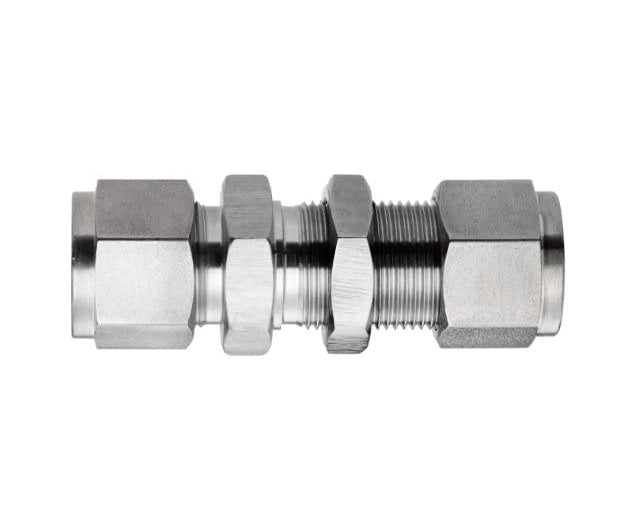

N2700-LN-02-02-SS by Brennan Inc. | -02 Instrumentation Fitting x -02 Instrumentation Fitting Bulkhead Union | Straight | Stainless Steel

N2700-LN-02-02-SS by Brennan Inc. | -02 Instrumentation Fitting x -02 Instrumentation Fitting Bulkhead Union | Straight | Stainless Steel

Sale price$60.38

Brennan Inc.
Double Ferrule Tube Fittings: N2700-LN - Instrumentation Fitting x Instrumentation Fitting Bulkhead Union Straight
Buy More, Save More!
Quantity Price Each
10–39 $56.76
40–79 $51.32
80+ $45.29
Discounts applied in cart/checkout.

Product Data:

Shape:

Straight

Ends Configuration:
  • 1/8in Tube Compression
  • 1/8in Tube Compression
  • Some Ends Match
Material(s):
  • Stainless Steel
Part Number Material T Tube OD TX Tube OD A AX C CX D DX E Min. F A/F G A/F GX A/F H HX Panel Hole Drill Size Max. Panel Thickness
N2700-LN-02-02-B Brass 1/8" - 51.3mm 31.2mm 15.3mm - 12.7mm - 2.4mm 11.0mm 11.0mm - 38.1mm 24.6mm 8.3mm 12.7mm
N2700-LN-04-04-B Brass 1/4" - 57.6mm 33.6mm 17.8mm - 15.3mm - 4.8mm 16.0mm 14.0mm - 43.0mm 26.2mm 11.5mm 10.1mm
N2700-LN-06-06-B Brass 3/8" - 62.2mm 36.8mm 19.3mm - 7.1mm - 7.1mm 22mm 17mm - 47.5mm 29.5mm 14.6mm 11.1mm
N2700-LN-08-08-B Brass 1/2" - 71.1mm 41.9mm 21.8mm - 22.9mm - 10.4mm 24.0mm 22.0mm - 50.8mm 31.8mm 19.5mm 12.7mm
N2700-LN-01-01-SS Stainless Steel 1/16" - 31.5mm 17.3mm 11.0mm - 8.6mm - 1.3mm 11.0mm 8.0mm - 23.8mm 13.5mm 5.2mm 3.0mm
N2700-LN-02-02-SS Stainless Steel 1/8" - 51.3mm 31.2mm 15.3mm - 12.7mm - 2.4mm 11.0mm 11.0mm - 38.1mm 24.6mm 8.3mm 12.7mm
N2700-LN-04-04-SS Stainless Steel 1/4" - 57.6mm 33.6mm 17.8mm - 15.3mm - 4.8mm 16.0mm 14.0mm - 43.0mm 26.2mm 11.5mm 10.1mm
N2700-LN-05-05-SS Stainless Steel 5/16" - 60.7mm 35.8mm 18.5mm - 16.3mm - 6.3mm 17.0mm 16.0mm - 46.0mm 28.5mm 13.0mm 11.1mm
N2700-LN-06-04-SS Stainless Steel 3/8" 1/4" 60.7mm 36.6mm - 17.8mm 16.8mm 15.3mm 4.8mm 22mm 17mm 14mm 46.0mm 29.5mm 14.6mm 11.2mm
N2700-LN-06-06-SS Stainless Steel 3/8" - 62.2mm 36.8mm 19.3mm - 7.1mm - 7.1mm 22.0mm 17.0mm - 47.5mm 29.5mm 14.6mm 11.1mm
N2700-LN-08-08-SS Stainless Steel 1/2" - 71.1mm 41.9mm 21.8mm - 22.9mm - 10.4mm 24.0mm 22.0mm - 50.8mm 31.8mm 19.5mm 12.7mm
N2700-LN-10-10-SS Stainless Steel 5/8" - 72.6mm 42.7mm 21.8mm - 24.4mm - 12.7mm 27.0mm 25.0mm - 52.3mm 32.5mm 22.6mm 12.7mm
N2700-LN-12-12-SS Stainless Steel 3/4" - 79.0mm 47.5mm 21.8mm - 24.4mm - 16.0mm 30.0mm 28.5mm - 58.6mm 37.4mm 25.8mm 16.8mm
N2700-LN-16-16-SS Stainless Steel 1" - 95.6mm 57.4mm 26.4mm - 31.2mm - 22.3mm 35.0mm 38.0mm - 71.3mm 45.2mm 33.7mm 19.0mm

Brennan

Brennan Industries, founded in 1953, distinguishes itself with a commitment to quality in hydraulic and pneumatic fittings. With over 120,000 styles and sizes, Brennan serves a global market through extensive distribution networks. As a privately held company, Brennan's principals actively oversee operations, ensuring top-tier customer service and responsiveness. Their products meet or exceed J.I.C./S.A.E. and international standards, supported by ISO 9001:2015, AS9100D, and NADCAP certifications. Brennan's offerings include standard and custom solutions, backed by robust engineering support. With 13 distribution centers worldwide, Brennan delivers exceptional quality, service, and competitive pricing for all hydraulic and pneumatic fitting needs.
