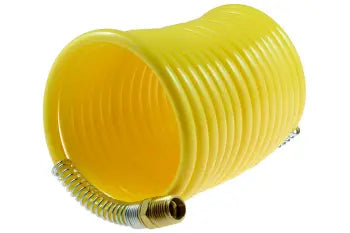

N14-25 by Coilhose | Coiled Air Hose | 1/4" Hose ID | 1/4" Male NPT Thread | 2 Rigid Fittings | Yellow | Nylon | 25ft
Coilhose Pneumatics

N14-25 by Coilhose | Coiled Air Hose | 1/4" Hose ID | 1/4" Male NPT Thread | 2 Rigid Fittings | Yellow | Nylon | 25ft

Sale price$33.61
Coilhose Pneumatics - Coiled Hose - Nylon Air Hose - 1/4" ID

Product Data:

Color(s):
  • Yellow
Material(s):
  • Nylon
Special Properties:
  • High Temperature
Overview:
  • This lightweight, permanently-coiled hose is manufactured from tough, abrasion-resistant Nylon 11 and designed to withstand temperatures between -60° F and +200° F. Each assembly is supplied with durable brass compression fittings, tube inserts and hose ferrules. Spring guards for additional strain relief are also provided on all assemblies, except 3/4".
Benefits:
  • Heavy duty brass fittings assure longer service life in rugged industrial environments.
  • High quality Nylon 11 formulation resists moisture absorption, making it the superior nylon tubing choice for most applications.
Additional Sizes:

Specifications:
Model Tube I.D Tube O.D WallThickness WPat 70° F NominalCoil O.D. RetractedLength RecommendedWorkingLength NominalWeight25' StandardColor
N18-25 1/8" .182/.189 .029+/-.003 315 PSI 1-1/2" 14-3/8" 22' 4 oz. Blue
N316-25 3/16" .247/.253 .031+/-.003 230 PSI 2-7/8" 9-1/2" 22' 8 oz. Yellow
N14-25 1/4" .305/.313 .033+/-.003 185 PSI 3-1/2" 10-1/2" 22' 10 oz. Yellow
N516-25 5/16" .369/.377 .037+/-.003 175 PSI 4-5/8" 10-1/2" 22' 12 oz. Yellow
N38-25 3/8" .465/.475 .045+/-.003 165 PSI 5-5/8" 10-1/4" 21' 16 oz. Yellow
N12-25 1/2" .620/.630 .062+/-.003 170 PSI 9" 9" 18' 30 oz. Yellow
N34-25 3/4" .878/.886 .066+/-.003 120 PSI 12-1/2" 9" 17' 34 oz. Yellow

Part No Inside
Diameter		 Overall
Length		 Fittings Color Retracted
Length		 Working
Length
N14-12 1/4" 12 ft 1/4" 2 Rigid MPT Yellow 4.6" 9.6ft
N14-12A 1/4" 12 ft 1/4" 1 Rigid / 1 Swivel MPT Yellow 4.6" 9.6ft
N14-12B 1/4" 12 ft 1/4" 2 Swivel MPT Yellow 4.6" 9.6ft
N14-17 1/4" 17 ft 1/4" 2 Rigid MPT Yellow 6.5" 13.6ft
N14-17A 1/4" 17 ft 1/4" 1 Rigid / 1 Swivel MPT Yellow 6.5" 13.6ft
N14-17B 1/4" 17 ft 1/4" 2 Swivel MPT Yellow 6.5" 13.6ft
N14-25 1/4" 25 ft 1/4" 2 Rigid MPT Yellow 9.5" 20ft
N14-25A 1/4" 25 ft 1/4" 1 Rigid / 1 Swivel MPT Yellow 9.5" 20ft
N14-25B 1/4" 25 ft 1/4" 2 Swivel MPT Yellow 9.5" 20ft
N14-50 1/4" 50 ft 1/4" 2 Rigid MPT Yellow 19.1" 40ft
N14-50A 1/4" 50 ft 1/4" 1 Rigid / 1 Swivel MPT Yellow 19.1" 40ft
N14-50B 1/4" 50 ft 1/4" 2 Swivel MPT Yellow 19.1" 40ft
N14-100 1/4" 100 ft None Yellow 38.2" 80ft
1/8" I.D. is available in blue only. All other hoses are available in yellow (standard) or red (contact customer service).
