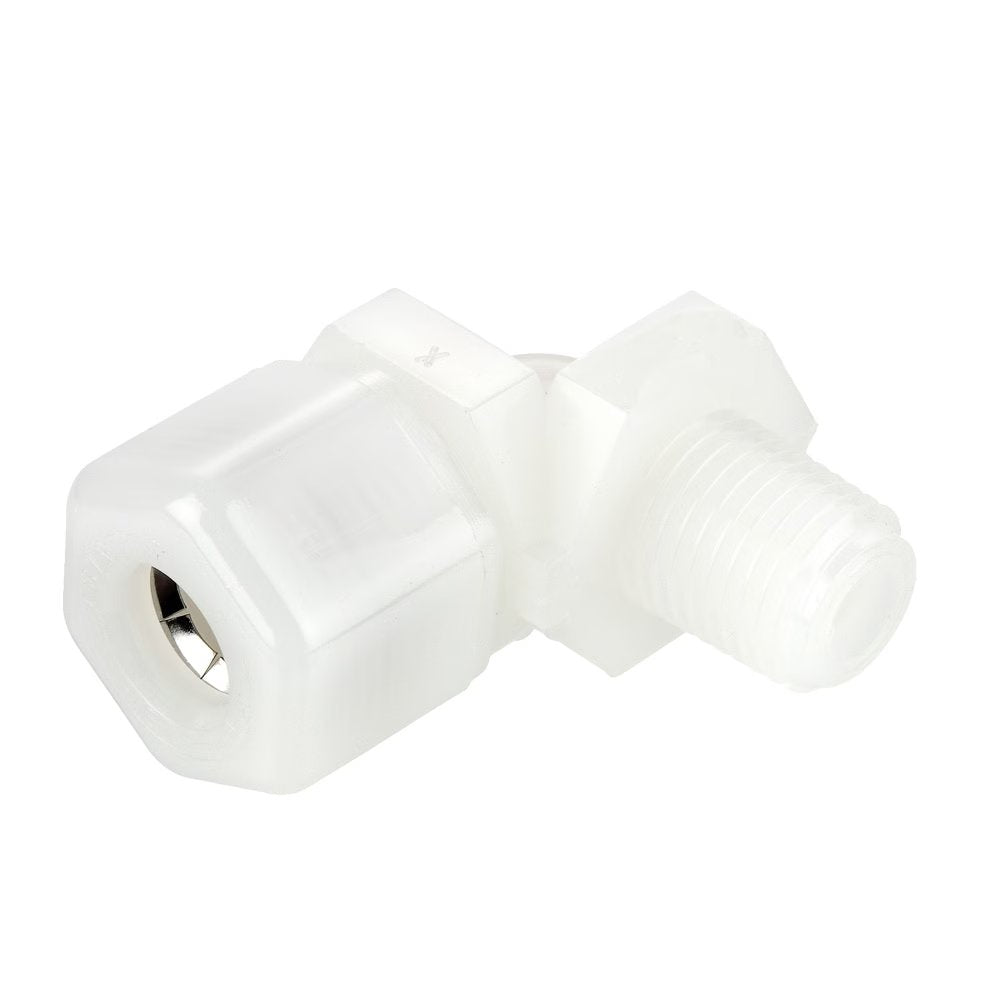

N10ME8 by Parker | Threaded Fitting | 5/8" Tube OD x 3/8" Male NPTF Thread | 1-3/16" Hex | 90° Elbow | Natural | Nylon
by Parker Hannifin
Fast & Tite® Fittings:ME - Male Elbow
| Buy More, Save More! | |
| Quantity | Price Each |
| 20–39 | $3.79 |
| 40–79 | $3.43 |
| 80+ | $3.02 |
Discounts applied in cart/checkout.
Product Data:
Brand:
Series:
Shape:
90° Elbow
Ends Configuration:
Material(s):
Seal Material(s):
Special Properties:
| Product Features: |
|
||||||
|---|---|---|---|---|---|---|---|
| Markets: |
|
||||||
| Applications: |
|
||||||
 |
|||||||
| Temperature Range: | 0° to +200° F (-17.8° to +93.3° C) | ||||||
| Compatible Tubing: |
|
||||||
 |
|||||||
 |
||||||||
|---|---|---|---|---|---|---|---|---|
| Black Polypropylene Part Number | White Polypropylene Part Number | Natural Nylon Part Number | Nom. Tube O.D. | NPTF Thread Size | Hex (C) | Overall Length (L) | Flow Diameter (D) | |
| P4ME2 | - | N4ME2 | 1/4" | 1/8" | 3/4" | 1.06" | .81" | .170" |
| P4ME4 | W4ME4 | N4ME4 | 1/4" | 1/4" | 3/4" | 1.06" | 1.02" | .170" |
| P4ME6 | W4ME6 | N4ME6 | 1/4" | 3/8" | 3/4" | 1.06" | 1.02" | .170" |
| P5ME2 | - | - | 5/16" | 1/8" | 3/4" | 1.06" | .81" | .193" |
| P5ME4 | - | N5ME4 | 5/16" | 1/4" | 3/4" | 1.06" | 1.02" | .193" |
| P5ME6 | - | - | 5/16" | 3/8" | 3/4" | 1.06" | 1.02" | .193" |
| P6ME4 | W6ME4 | N6ME4 | 3/8" | 1/4" | 7/8" | 1.28" | 1.12" | .250" |
| P6ME6 | W6ME6 | N6ME6 | 3/8" | 3/8" | 7/8" | 1.28" | 1.12" | .250" |
| P6ME8 | W6ME8 | N6ME8 | 3/8" | 1/2" | 1" | 1.28" | 1.34" | .250" |
| P6ME12 | - | N6ME12 | 3/8" | 3/4" | 1-3/16" | 1.06" | 1.02" | .170" |
| P8ME4 | W8ME4 | N8ME4 | 1/2" | 1/4" | 1-1/16" | 1.48" | 1.22" | .250" |
| P8ME6 | W8ME6 | N8ME6 | 1/2" | 3/8" | 1-1/16" | 1.56" | 1.21" | .375" |
| P8ME8 | W8ME8 | N8ME8 | 1/2" | 1/2" | 1-1/16" | 1.56" | 1.34" | .375" |
| P8ME12 | - | - | 1/2" | 3/4" | 1-1/8" | 1.50" | 1.40" | .375" |
| P10ME8 | - | N10ME8 | 5/8" | 1/2" | 1-3/16" | 1.72" | 1.40" | .500" |
