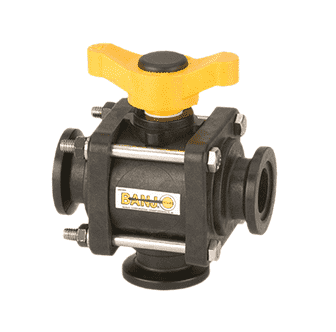

MV100BL by Banjo | 3-Way Manifold Ball Valve for Bottom Load | 4-Bolt | 1" Flange x 1" Flange | Opening Thru Ball: 1" | T Handle | 300 PSI | Polypropylene | Pack of 6

MV100BL by Banjo | 3-Way Manifold Ball Valve for Bottom Load | 4-Bolt | 1" Flange x 1" Flange | Opening Thru Ball: 1" | T Handle | 300 PSI | Polypropylene | Pack of 6

Sale price$342.74



Banjo Manifold Flange Connections - 3-Way Manifold Ball Valves - Bottom Load - Polypropylene

Package Quantity: 6 EA

Buy More, Save More!
Quantity Price Each
5–14 $322.18
15–29 $291.33
30+ $257.06
Discounts applied in cart/checkout.

Product Data:

Shape:

Tee

Ends Configuration:
  • 1in Full Port Manifold Flange
  • 1in Full Port Manifold Flange
  • 1in Full Port Manifold Flange
  • Some Ends Match
Material(s):
  • Polypropylene
Applications:
  • Fluids
Features:
  • BOTTOM LOAD: Directional flow right or left. Valve can be turned off to stop flow.
  • Stainless steel bolts
  • Precision molded in polypropylene. Polypro py lene is reinforced with fiber glass for additional strength
  • Self-aligning ball moves freely against the PTFE seats for smooth operation
  • The valve opens and closes with very little pressure on the handle
  • Ball is diamond turned, after molding, to make it spherically perfect, which provides precise contact between ball and seats
  • PTFE self-lubricating stem bushings and seats cannot stick or bind
  • FKM (viton type) seals

Part Number Description End Type Opening Thru Ball Max PSI Handle Type Package Quantity
4 Bolt Bottom Load Manifold Valves
MV100BL Full Port 1" Flange x 1" Flange x 1" Flange 1" 300 PSI T 1
MV200BL Standard Port 2" Flange x 2" Flange x 2" Flange 1-1/2" 225 PSI T 1
MV220BL Full Port 2" Flange x 2" Flange x 2" Flange 2" 150 PSI Straight 1
6 Bolt Bottom Load Manifold Valves
MV300BL Full Port 3" Flange x 3" Flange x 3" Flange 3" 150 PSI Straight 1

Replacement Parts for MV100BL
Item Part Number Description Quantity Required
1 VE10278A 1" Manifold End Plate 2
3 MV10354B 1" Manifold Body 1
4 V07021A Handle Washer 1
5 V10020A Handle Bolt 1
6 V10118 Lock Washer 4
7 V10119 Body Nut 4
9 V10159 Upper Stem Bushing 1
10 V10163 FKM (viton type) Stem O-Ring 1
11 V10060 Thrust Bushing 2
12 V10151A Stem 1
13 VE10258A Seat 2
14 V10355B Bottom Load Ball 1
15 VE10264 Body O-Ring 2
16 V20353C Handle Cap 1

Banjo

Banjo is a world-class producer of a wide range of mechanical and electrical valves, fittings, and self-priming centrifugal pumps for agriculture and numerous industrial applications that ship to every corner of the globe. Banjo employs an array of molding presses, numerous machining and assembly cells, and an optimized logistics system empowering our production and shipping operations.
