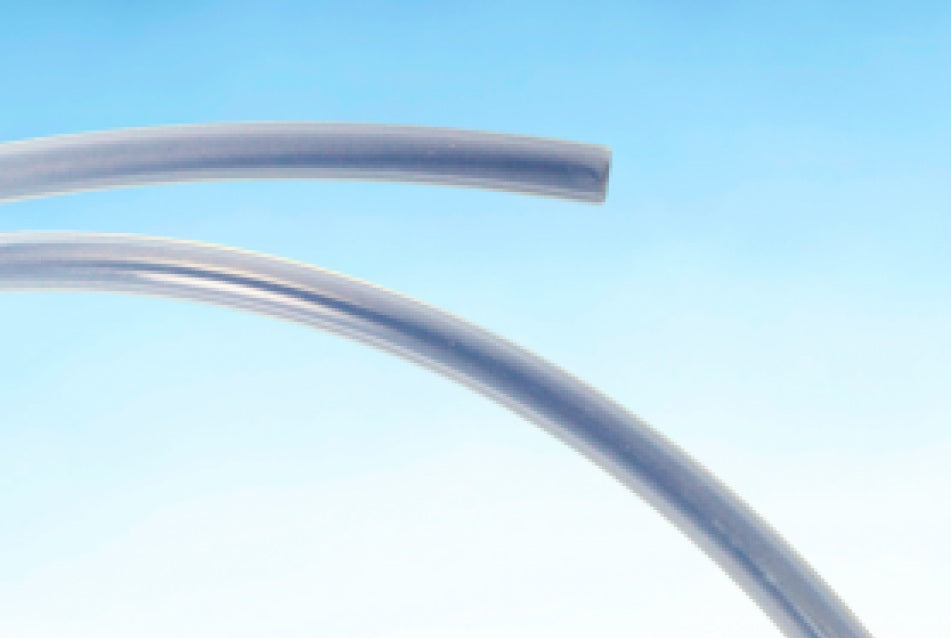

MUS1000-0375-062-50 Versilon™ by Saint Gobain | MUS-1000 | High Clarity Super Smooth Fluoropolymer Tubing | 1/4" ID x 3/8" OD x 1/16" Wall | 50' Package Length
Saint Gobain
Versilon® MUS-1000 | High Clarity Super Smooth Fluoropolymer Tubing
Versilon® MUS-1000 tubing stands out due to its remarkable surface smoothness, up to six times smoother than conventional fluoropolymers. This minimizes cross-contamination, resulting in greater product yields and easier system cleaning.
Package Quantity: 50 EA
| Buy More, Save More! | |
| Quantity | Price Each |
| 5–14 | $412.04 |
| 15–29 | $372.59 |
| 30+ | $350.67 |
Versilon® MUS-1000 | High Clarity Super Smooth Fluoropolymer Tubing
Versilon® MUS-1000 tubing from Saint-Gobain not only maintains fluid integrity but also surpasses standard fluoropolymer resins in several key aspects. Versilon® MUS-1000 tubing stands out due to its remarkable surface smoothness, up to six times smoother than conventional fluoropolymers. This minimizes cross-contamination, resulting in greater product yields and easier system cleaning. Additionally, its visual clarity is virtually unmatched among fluoropolymers. Coupled with its chemical inertness, Versilon® MUS-1000 tubing is ideal for identifying a wide range of chemicals. Its transparency allows significant UV light transmission, making it perfect for purification applications.
1
What is this product used for?
- Environmental
- Chemical processing
- General industrial
- Water purification
- Nuclear
2
What are the key specifications?
Fluoropolymer
Fluoropolymer
None
Clear
400°F (205°C)
-400°F (-240°C)
N/A
Not intended as an implant material!
3
What are the main product features?
- Excellent mechanical properties.
- Superior clarity versus other fluoropolymer tubing.
- Resistant to virtually all commonly used chemicals.
- Very high UV transmission compared to other fluoropolymer tubing.
- Vastly superior surface smoothness compared to other fluoropolymer tubing.
4
Which sizes or configurations are available?
| Part Number (50ft Lengths) |
Inside Diameter (in) |
Outside Diameter (in) |
Wall Thickness (in) |
Bend Radius (in) |
Max. Working Pressure at 73°F (PSI)* |
Max. Working Pressure at 212°F (PSI)* |
Max. Working Pressure at 400°F (PSI)* |
|---|---|---|---|---|---|---|---|
| MUS1000-0125-031-50 | 1/16" | 1/8" | 1/32" | 1/2" | 379 PSI | 165 PSI | 87 PSI |
| MUS1000-0250-062-50 | 1/8" | 1/4" | 1/16" | 1/2" | 383 PSI | 167 PSI | 88 PSI |
| MUS1000-0250-047-50 | 5/32" | 1/4" | 3/32" | 3/4" | 266 PSI | 116 PSI | 61 PSI |
| MUS1000-0250-031-50 | 3/16" | 1/4" | 1/32" | 1" | 163 PSI | 71 PSI | 37 PSI |
| MUS1000-0312-031-50 | 1/4" | 5/16" | 1/32" | 1-3/4" | 129 PSI | 56 PSI | 29 PSI |
| MUS1000-0375-062-50 | 1/4" | 3/8" | 1/16" | 1" | 230 PSI | 100 PSI | 53 PSI |
| MUS1000-0500-062-50 | 3/8" | 1/2" | 1/16" | 2" | 164 PSI | 71 PSI | 38 PSI |
How is this product sold?
No by the foot sales. This is a Packaged Length product.
6
Where can I find product documents?
Saint Gobain Versilon® MUS-1000 Data Sheet
Consult product literature, manufacturer documentation, or supporting documents for additional information.
Product Data:
