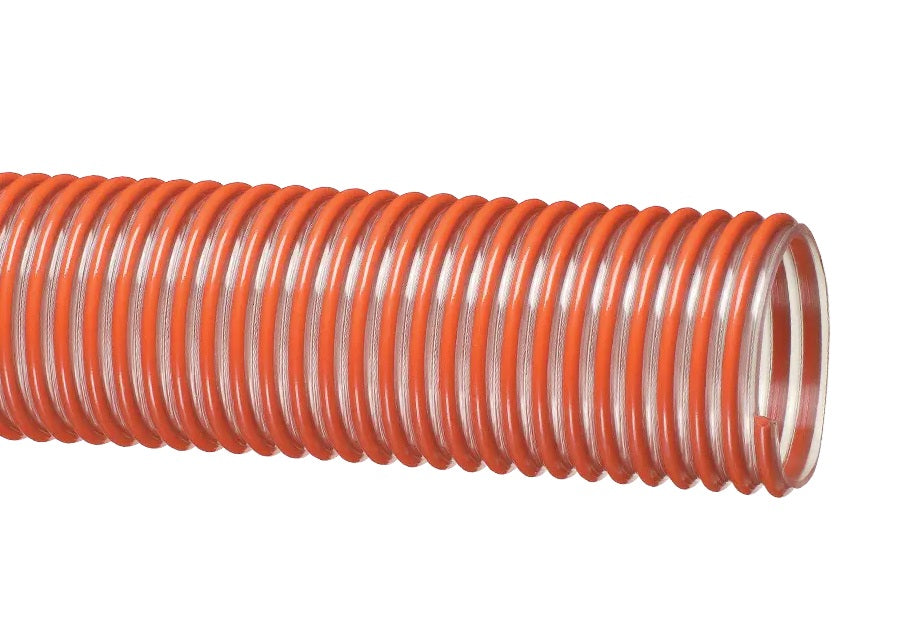

MULCH400X100 Tigerflex® by Kuriyama | MULCH™ Series | Heavy Duty Material Handling Hose | PVC | 4" ID | 4.57" OD | 100ft Length
Tigerflex® | MULCH™ Series | Heavy Duty Material Handling Hose | PVC
Designed for for standard-duty material handling.
Ideal for delivering mulch, bark, wood chips, soil, seed, compost, and other surfacing materials.
Made in the USA.
Package Quantity: 100 Foot
| Buy More, Save More! | |
| Quantity | Price Each |
| 4–7 | $1,386.55 |
| 8–14 | $1,327.55 |
| 15+ | $1,180.04 |
Product Data:
35
Tigerflex™ MULCH Series
Abrasion-resistant PVC material handling hose for the delivery of mulch, bark, wood chips, soil, seed, compost and other surfacing materials.
Abrasion Resistant PVC
Durable tube for longer service life
See-the-Flow
Transparent construction
Convoluted Cover
Increased hose flexibility
Made in the USA
Manufactured domestically
1
What is this product used for?
- Material handling — standard duty
- Mulch, bark, wood chips and other surfacing material delivery
- Soil, seed and compost delivery
2
What are the key specifications?
PVC
Rigid PVC helix
-4°F (-20°C) to +150°F (+65°C)
(Actual service temperature range is application dependent)
Phthalate Free (10), RoHS (11) — see the Kuriyama Tigerflex Hose Specifications Guide PDF
3
What are the main product features?
- Abrasion Resistant PVC Tube — Formulated from highly durable PVC compounds for increased abrasion and tear resistance versus standard PVC hoses.
- Transparent Construction — "See-the-flow." Allows for visual confirmation of material flow.
- Convoluted Outer Cover — Provides increased hose flexibility.
- Made in the USA — Manufactured domestically.
4
Which sizes or configurations are available?
| Part Number | ID | OD | Working Pressure (PSI) | Vacuum Rating (in Hg) | Min. Bending Radius | Length | Weight (lbs/ft) | ||
|---|---|---|---|---|---|---|---|---|---|
| at 68°F | at 104°F | at 68°F | at 104°F | ||||||
| MULCH400X100 | 4" (101.6 mm) | 4.57" (116.0 mm) | 35 PSI | 15 PSI | Full | 28 in Hg | 8" | 100 ft | 1.42 |
| MULCH500X100 | 5" (127.0 mm) | 5.61" (142.6 mm) | 30 PSI | 12 PSI | 24 in Hg | 22 in Hg | 14" | 100 ft | 1.75 |
| MULCH600X100 | 6" (153.4 mm) | 6.79" (172.4 mm) | 25 PSI | 10 PSI | 24 in Hg | 22 in Hg | 16" | 100 ft | 2.42 |
5
Where can I find product documents?
Kuriyama Tigerflex Hose Specifications Guide PDF
For more information on specification codes and hose details, consult the Kuriyama Tigerflex Hose Specifications Guide.
