MT-04-04 by Kurt Hydraulics | Flareless Compression with Nut and Sleeve | SAE J514 | for 1/4" Hose ID

MT-04-04 by Kurt Hydraulics | Flareless Compression with Nut and Sleeve | SAE J514 | for 1/4" Hose ID

Sale price$13.69

by Kurt Hydraulics
MT - Flareless Compression with Nut and Sleeve Per SAE J514

Kurt Fittings and Hose should only be used together.
Buy More, Save More!
Quantity Price Each
10–39 $12.87
40–79 $11.64
80+ $10.27
Discounts applied in cart/checkout.

Product Data:

Series:
  • Braided Coupling Series
Shape:

Straight

Ends Configuration:
  • 1/4in Hose Barb
  • 1/4in Tube Compression

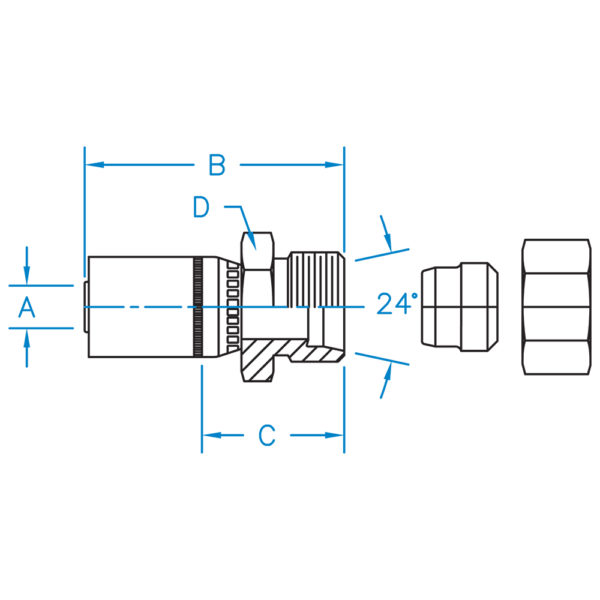

Part Number A B C D Hose ID
(In)		 Thread
MT-04-04 0.250 2.178 0.923 9/16 1/4" 7/16-20
MT-04-05 0.250 2.178 0.923 5/8 1/4" 1/2-20
MT-04-06 0.250 2.194 0.939 3/4 1/4" 9/16-18
MT-04-08 0.250 2.318 1.063 7/8 1/4" 3/4-16
MT-06-04 0.375 2.439 0.939 3/4 3/8" 7/16-20
MT-06-05 0.375 2.529 1.029 3/4 3/8" 1/2-20
MT-06-06 0.375 2.439 0.955 3/4 3/8" 9/16-18
MT-06-08 0.375 2.579 1.079 3/4 3/8" 3/4-16
MT-08-08 0.500 2.657 1.157 7/8 1/2" 3/4-16
MT-08-10 0.500 2.720 1.220 15/16 1/2" 7/8-14
MT-08-12 0.500 2.843 1.343 1-1/4 1/2" 1-1/16-12
MT-12-12 0.750 2.952 1.359 1-1/4 3/4" 1-1/16-12
MT-12-16 0.750 3.028 1.435 1-1/2 3/4" 1-5/16-12
MT-16-16 1.000 3.179 1.445 1-1/2 1.000" 1-5/16-12

Kurt Hydraulics

Kurt Hydraulics has been a U.S. manufacturer of hydraulic couplings and
systems for over 35 years. We offer a full line of hydraulic couplings and a complete line of high quality hydraulic hose tested beyond SAE specifications. Kurt Hydraulics’ hose and couplings are sold through a comprehensive network of distributors in North America.
