MSBC500SS by Dixon Valve | MannTek Safety Break-Away Coupling | Marine Version | 5" Size | 125 DN | Female NPT x Female NPT | 316 Stainless Steel
MSBC500SS by Dixon Valve | MannTek Safety Break-Away Coupling | Marine Version | 5" Size | 125 DN | Female NPT x Female NPT | 316 Stainless Steel
Dixon

MSBC500SS by Dixon Valve | MannTek Safety Break-Away Coupling | Marine Version | 5" Size | 125 DN | Female NPT x Female NPT | 316 Stainless Steel

Contact for Price

If you are interested in this item please fill out the Contact Form below.

Contact Us

How can we help you?

Price, availability, and details—available upon request.

Features:

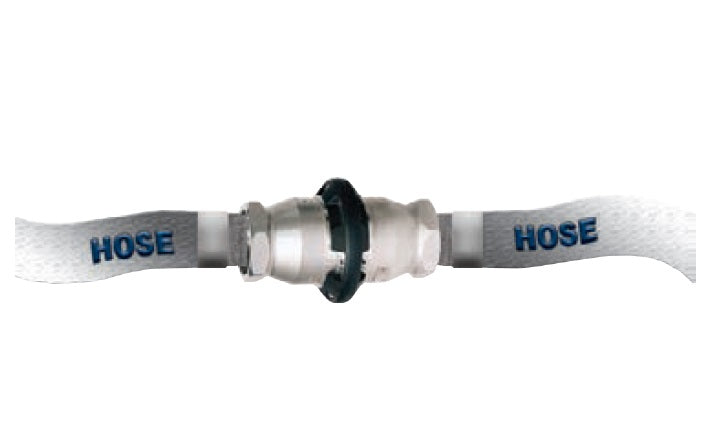

  • Designed to be installed within a hose string where the coupling will have a length of hose attached to both sides.
  • Coupling automatically senses an excessive load, closes the valves and disconnects.
  • Release is executed when force causes bolts to break.
Construction:
  • 316 Stainless Steel body.
  • FKM O-rings.
Specifications:
  • Working pressure: 360 PSI at ambient temperature 70°F (21°C).
How It Works:
  • The safety breakaway valve consists of two halves, each with a valve that has an O-ring seal. When the safety breakaway couplings separate, it allows the valves to close. The two valves close rapidly, minimizing exposure to personnel and the environment.
  • Safety breakaway couplings have three external break bolts. In the case of axial tension all of the bolts take up the force corresponding to the break force on the hose with a safety margin.
Part Number Size DN Size Length Width Flow
MSBC200SS 2" 50 DN 7" (178 mm) 4.5" (114 mm) 200 GPM (757 LPM)
MSBC300SS 3" 80 DN 11" (279 mm) 6.8" (173 mm) 650 GPM (2460 LPM)
MSBC400SS 4" 100 DN 12" (305 mm) 8.3" (210 mm) 800 GPM (3028 LPM)
MSBC500SS 5" 125 DN 14" (356 mm) 10.6" (269 mm) 1100 GPM (4154 LPM)
MSBC600SS 6" 150 DN 16" (406 mm) 12" (305 mm) 1500 GPM (5678 LPM)
