MS-08-08-K2 by Kurt Hydraulic | K2 Series | 1/2" Hose Barb x 1/2" Male SAE 45° Flare | Carbon Steel

MS-08-08-K2 by Kurt Hydraulic | K2 Series | 1/2" Hose Barb x 1/2" Male SAE 45° Flare | Carbon Steel

Sale price$65.41

Kurt Hydraulics
MS - 45° SAE Male Rigid
Buy More, Save More!
Quantity Price Each
10–39 $61.49
40–79 $55.60
80+ $49.06
Discounts applied in cart/checkout.

Product Data:

Series:
  • K2 Series
Shape:

Straight

Ends Configuration:
  • 1/2in Hose Barb
  • 1/2in Male SAE 45 Flare

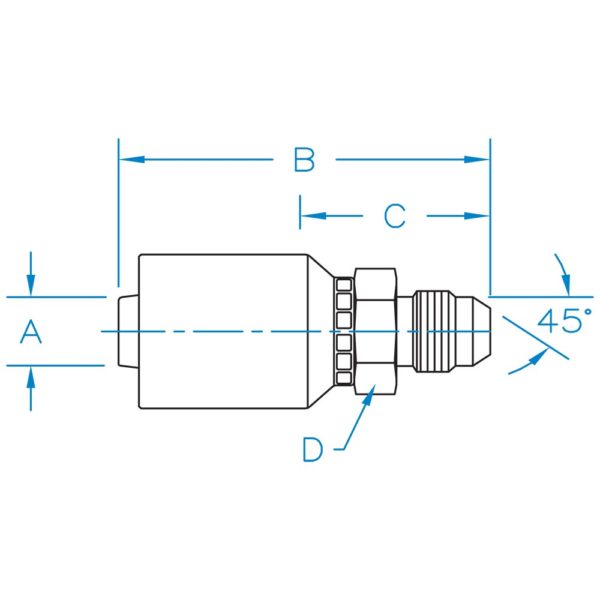

Part Number Hose I.D. (in.) B C D Thread
MS-04-04-K2 1/4" 1.97" 0.91" 9/16" 7/16 – 20
MS-04-06-K2 1/4" 2.25" 1.19" 11/16" 5/8 – 18
MS-06-06-K2 3/8" 2.50" 1.13" 11/16" 5/8 – 18
MS-06-08-K2 3/8" 2.65" 1.28" 7/8" 3/4 – 16
MS-08-08-K2 1/2" 2.67" 1.33" 7/8" 3/4 – 16

Kurt Hydraulics

Kurt Hydraulics has been a U.S. manufacturer of hydraulic couplings and
systems for over 35 years. We offer a full line of hydraulic couplings and a complete line of high quality hydraulic hose tested beyond SAE specifications. Kurt Hydraulics’ hose and couplings are sold through a comprehensive network of distributors in North America.
