MPX90-06-04-K2 by Kurt Hydraulic | K2 Series | 3/8" Hose Barb x 1/4" Male Pipe Swivel Block Style | 90° Elbow | Carbon Steel
Kurt Hydraulics
MPX90 - Male Pipe 90° Swivel Block Style
| Buy More, Save More! | |
| Quantity | Price Each |
| 10–39 | $51.62 |
| 40–79 | $46.67 |
| 80+ | $41.18 |
Discounts applied in cart/checkout.
Product Data:
Series:
Shape:
90 Degree
Ends Configuration:
Material(s):
Special Properties:

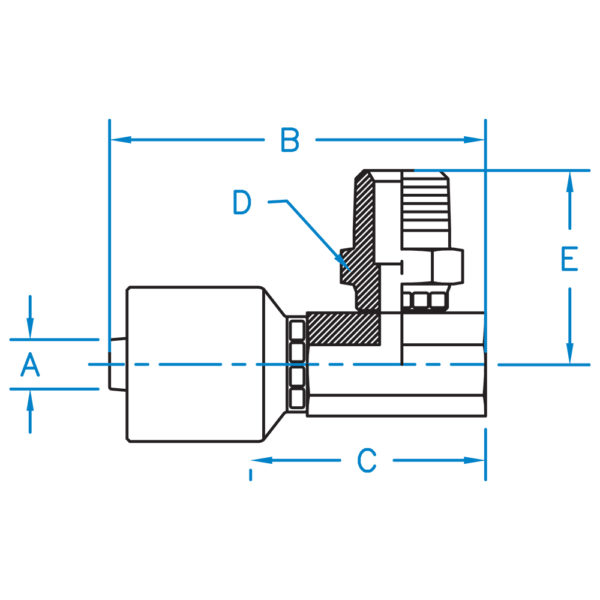

| Part Number | Hose I.D. (in.) | B | C | D | E | Thread |
|---|---|---|---|---|---|---|
| MPX90-04-02-K2 | 1/4" | 2.31" | 0.65" | 1/2" | 1.30" | 1/8 – 27 |
| MPX90-04-04-K2 | 1/4" | 2.03" | 0.97" | 11/16" | 1.54" | 1/4 – 18 |
| MPX90-04-06-K2 | 1/4" | 2.03" | 0.56" | 3/4" | 1.55" | 3/8 – 18 |
| MPX90-06-04-K2 | 3/8" | 3.01" | 1.11" | 11/16" | 1.64" | 1/4 – 18 |
| MPX90-06-06-K2 | 3/8" | 2.56" | 1.19" | 3/4" | 1.72" | 3/8 – 18 |
| MPX90-06-08-K2 | 3/8" | 2.56" | 0.66" | 7/8" | 1.85" | 1/2 – 14 |
| MPX90-08-08-K2 | 1/2" | 2.64" | 1.33" | 15/16" | 1.92" | 1/2 – 14 |
