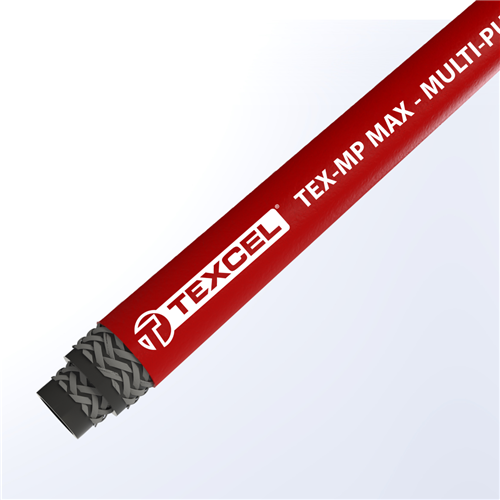

MP-MAX-24-R300-250R by Texcel | TEX-MP MAX Series | Non-Conductive Multi-Purpose Air Hose | 1-1/2" Hose ID | 300 PSI | Red | 250ft Length
Texcel
TEX-MP MAX Series | Non-Conductive Multi-Purpose Air Hose
Package Quantity: 250 Feet
| Buy More, Save More! | |
| Quantity | Price Each |
| 4–7 | $2,317.89 |
| 8–14 | $2,219.26 |
| 15+ | $1,972.67 |
Discounts applied in cart/checkout.
Product Data:
Series:
Color(s):
Internal Diameter:
Outer Diameter:
Tubing Construction:
Cover Construction:
| Technical Data: | |||
|---|---|---|---|
| Description: | Premium quality multi-purpose hose for applications calling for maximum oil resistance and higher working pressures. Tube handles oil-laden air, lubricating oils, mild alkalis or caustic solutions, fuel oil, and other petroleum-based products. Non-Conductive construction makes it suitable for applications where electrical exposure and contact with high voltage may be encountered. | Tube: | Black, NBR (ARPM Class A) |
| Cover: | Red, NBR/PVC (ARPM Class A) | Reinforcement: | Braided polyester cords |
| Safety Factor: | 3:1 | Temperature: | -20°F to +180°F |
| Branding: | TEXCEL® MP MAX - NON-CONDUCTIVE MULTIPURPOSE HOSE - 300PSI WP (2.07MPa) -LOT | ||
| Part Number | Package Type | Hose ID | Hose OD | Std. Length | Working Pressure (psi) | Lbs./ft |
|---|---|---|---|---|---|---|
| MP-MAX-4-R300-600R | Reel | 1/4" | 36/64" | 600' | 300 | 0.13 lbs |
| MP-MAX-6-R300-600R | Reel | 3/8" | 46/64" | 600' | 300 | 0.22 lbs |
| MP-MAX-8-R300-600R | Reel | 1/2" | 56/64" | 600' | 300 | 0.31 lbs |
| MP-MAX-10-R300-600R | Reel | 5/8" | - | 600' | 300 | - |
| MP-MAX-12-R300-600R | Reel | 3/4" | 1-14/64" | 600' | 300 | 0.48 lbs |
| MP-MAX-16-R300-400R | Reel | 1" | 1-28/64" | 400' | 300 | 0.66 lbs |
| MP-MAX-20-R300-300R | Reel | 1-1/4" | 1-48/64" | 300' | 300 | 0.69 lbs |
| MP-MAX-24-R300-250R | Reel | 1-1/2" | 2" | 250' | 300 | 0.80 lbs |
| MP-MAX-32-R250-200R | Reel | 2" | 2-38/64" | 200' | 250 | 1.54 lbs |
