MMSP90-16-28 by Kurt Hydraulics | Metric Standpipes | 90 Degree Tube | for 1" Hose ID

MMSP90-16-28 by Kurt Hydraulics | Metric Standpipes | 90 Degree Tube | for 1" Hose ID

Sale price$40.96
by Kurt Hydraulics
MMSP90 - Metric O.D. Stand Pipe 90 deg. Bent Tube
Kurt Fittings and Hose should only be used together.
Buy More, Save More!
Quantity Price Each
10–39 $38.50
40–79 $34.82
80+ $30.72
Discounts applied in cart/checkout.

Product Data:

Series:
  • Braided Coupling Series
Shape:

90 Degree

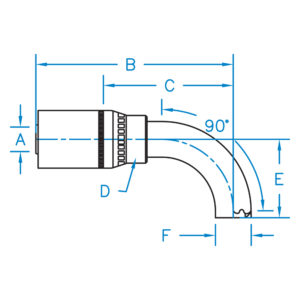

Part Number A B C D E F Hose ID
(In)
MMSP90-04-06 0.250 2.950 1.590 5/8 1.140 6MM 1/4"
MMSP90-04-08 0.250 3.070 1.720 5/8 1.340 8MM 1/4"
MMSP90-04-10 0.250 3.180 1.840 5/8 1.540 10MM 1/4"
MMSP90-06-10 0.375 3.200 1.830 3/4 1.540 10MM 3/8"
MMSP90-06-12 0.375 3.440 2.090 3/4 1.690 12MM 3/8"
MMSP90-06-14 0.375 3.560 2.220 7/8 1.890 14MM 3/8"
MMSP90-08-15 0.500 3.750 2.410 7/8 1.890 15MM 1/2"
MMSP90-08-16 0.500 3.790 2.440 7/8 2.130 16MM 1/2"
MMSP90-08-18 0.500 3.720 2.530 1.000 2.050 18MM 1/2"
MMSP90-10-18 0.625 3.920 2.530 1-1/8 2.050 18MM 5/8"
MMSP90-10-20 0.625 4.040 2.660 1-1/8 2.440 20MM 5/8"
MMSP90-12-20 0.750 4.040 2.660 1-1/8 2.440 20MM 3/4"
MMSP90-12-22 0.750 4.250 2.690 1-1/4 2.280 22MM 3/4"
MMSP90-12-25 0.750 4.450 2.880 1-3/8 2.840 25MM 3/4"
MMSP90-16-25 1.000 4.910 2.880 1-3/8 2.840 25MM 1.000"
MMSP90-16-28 1.000 5.010 3.410 1-3/8 2.640 28MM 1.000"
MMSP90-16-30 1.000 5.130 3.500 1-1/2 3.190 30MM 1.000"


Kurt Hydraulics

Kurt Hydraulics has been a U.S. manufacturer of hydraulic couplings and
systems for over 35 years. We offer a full line of hydraulic couplings and a complete line of high quality hydraulic hose tested beyond SAE specifications. Kurt Hydraulics’ hose and couplings are sold through a comprehensive network of distributors in North America.
