MIX90-04-03 by Kurt Hydraulics | Jump Size | 45° Elbow | Male SAE Inverted Flare | 90° Elbow | Swivel | for 1/4" Hose ID
by Kurt Hydraulics
MIX90 - 45 deg. SAE Male Inverted Flare 90 deg. Bent Tube Swivel
Kurt Fittings and Hose should only be used together.
| Buy More, Save More! | |
| Quantity | Price Each |
| 10–39 | $18.17 |
| 40–79 | $16.43 |
| 80+ | $14.50 |
Discounts applied in cart/checkout.
Product Data:
Series:
Shape:
90 Degree
Ends Configuration:
Special Properties:

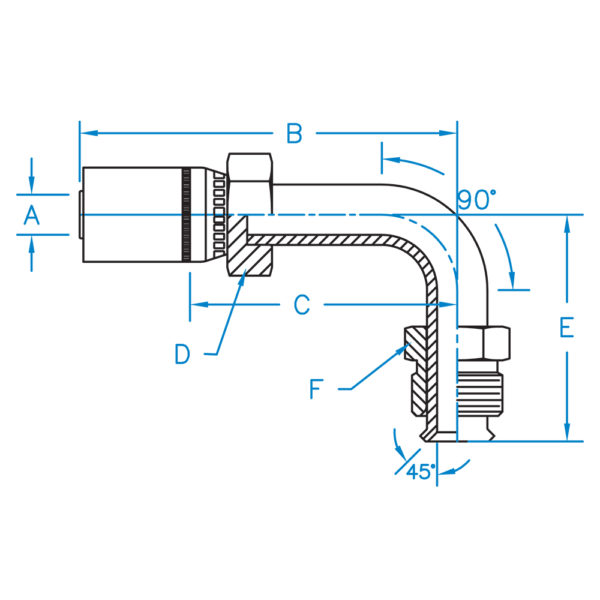

| Part Number | A | B | C | D | E | F |
Hose ID (In) |
Thread |
|---|---|---|---|---|---|---|---|---|
| MIX90-03-04 | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A |
| MIX90-04-03 | 0.250 | 3.005 | 1.750 | 9/16 | 1.380 | 3/8 | 1/4" | 6/8-24 |
| MIX90-04-04 | 0.250 | 3.280 | 1.940 | 5/8 | 1.470 | 7/16 | 1/4" | 7/16-24 |
| MIX90-04-05 | 0.250 | 3.520 | 2.160 | 5/8 | 1.660 | 1/2 | 1/4" | 1/2-20 |
| MIX90-04-06 | 0.250 | 3.500 | 2.160 | 5/8 | 1.690 | 5/8 | 1/4" | 5/8-18 |
| MIX90-05-05 | 0.312 | 4.000 | 2.300 | 5/8 | 1.660 | 1/2 | 5/16" | 1/2-20 |
| MIX90-05-06 | 0.312 | 4.050 | 2.670 | 5/8 | 1.690 | 5/8 | 5/16" | 5/8-18 |
| MIX90-06-04 | 0.375 | 2.630 | 1.130 | 11/16 R | 1.470 | 7/16 | 3/8" | 7/16-24 |
| MIX90-06-05 | 0.375 | 3.175 | 1.675 | 3/4 | 1.320 | 1/2 | 3/8" | 1/2-20 |
| MIX90-06-06 | 0.375 | 2.730 | 2.690 | 3/4 | 1.690 | 5/8 | 3/8" | 5/8-18 |
| MIX90-06-07 | 0.375 | 4.19 | 2.69 | 3/4 | 1.69 | 11/16 | 3/8" | 11/16-18 |
| MIX90-06-08 | 0.375 | 3.68 | 2.18 | 3/4 | 1.88 | 3/4 | 3/8" | 3/4-18 |
| MIX90-08-08 | 0.500 | 3.100 | 1.405 | 7/8 | 0.780 | 3/4 | 1/2" | 3/4-18 |
| MIX90-08-10 | 0.500 | 3.125 | 1.437 | 7/8 | 1.625 | 7/8 | 1/2" | 7/8-18 |
