MIX45-06-08-K2 by Kurt Hydraulic | K2 Series | 3/8" Hose Barb x 1/2" Male SAE 45° Inverted Flare | 45° Elbow | Carbon Steel
Kurt Hydraulics
MIX45 - 45° SAE Male Inverted Flare 45° Bent Tube Swivel
| Buy More, Save More! | |
| Quantity | Price Each |
| 10–39 | $44.78 |
| 40–79 | $40.49 |
| 80+ | $35.73 |
Discounts applied in cart/checkout.
Product Data:
Series:
Shape:
45 Degree
Ends Configuration:
Material(s):

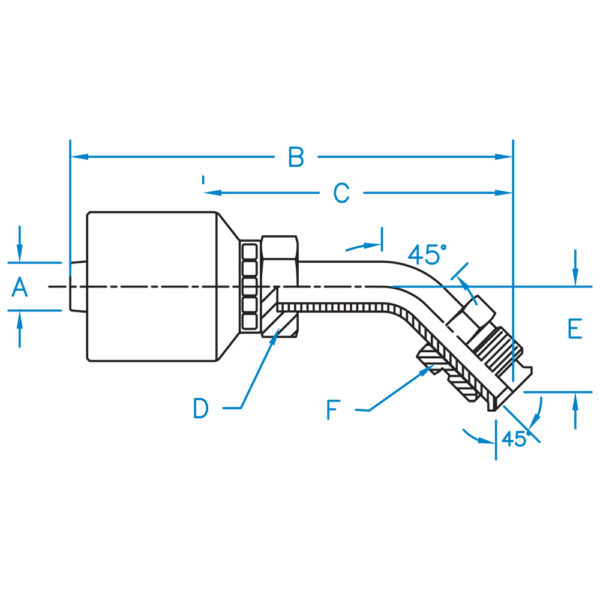

| Part Number | Hose I.D. (in.) | B | C | D | E | F | Thread |
|---|---|---|---|---|---|---|---|
| MIX45-04-04-K2 | 1/4" | 2.68" | 1.62" | 5/8" | 0.78" | 7/16" | 7/16 – 24 |
| MIX45-04-05-K2 | 1/4" | 2.82" | 1.76" | 5/8" | 0.88" | 1/2" | 1/2 – 20 |
| MIX45-04-06-K2 | 1/4" | 3.44" | 2.36" | 5/8" | 0.94" | 5/8" | 5/8 – 18 |
| MIX45-06-05-K2 | 3/8" | 3.15" | 1.78" | 11/16" | 0.88" | 1/2" | 1/2 – 20 |
| MIX45-06-06-K2 | 3/8" | 3.77" | 2.40" | 3/4" | 0.94" | 5/8" | 5/8 – 18 |
| MIX45-06-07-K2 | 3/8" | 3.98" | 2.61" | 11/16" | 0.94" | 11/16" | 11/16 – 18 |
| MIX45-06-08-K2 | 3/8" | 4.31" | 2.81" | 3/4" | 1.06" | 7/8" | 3/4 – 18 |
| MIX45-08-08-K2 | 1/2" | 4.12" | 2.78" | 7/8" | 1.06" | 3/4" | 3/4 – 18 |
| MIX45-08-10-K2 | 1/2" | 3.54" | 2.20" | 7/8" | 0.84" | 7/8" | 7/8 – 18 |
