MIX-08-08-K2 by Kurt Hydraulic | K2 Series | 1/2" Hose Barb x 1/2" Male SAE 45° Inverted Flare | Carbon Steel
Kurt Hydraulics
MIX - 45° SAE Male Inverted Flare
| Buy More, Save More! | |
| Quantity | Price Each |
| 10–39 | $46.62 |
| 40–79 | $42.16 |
| 80+ | $37.20 |
Discounts applied in cart/checkout.
Product Data:
Series:
Shape:
Straight
Ends Configuration:
Material(s):

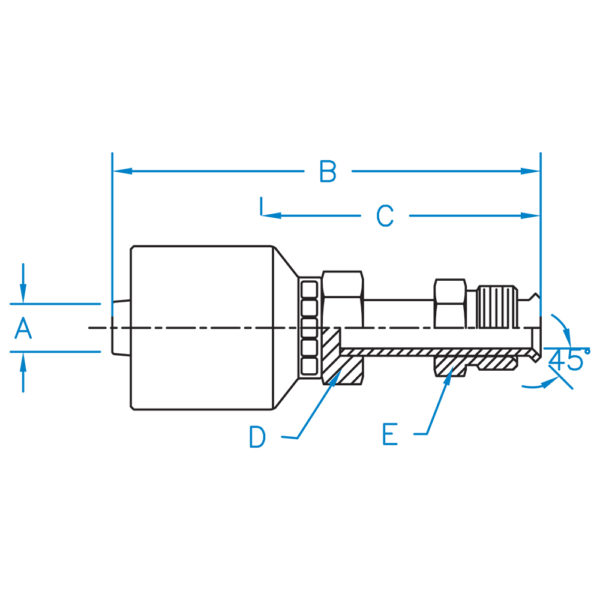

| Part Number | Hose I.D. (in.) | B | C | D | E | Thread |
|---|---|---|---|---|---|---|
| MIX-04-04-K2 | 1/4" | 2.93" | 1.85" | 5/8" | 7/16" | 7/16 – 24 |
| MIX-04-05-K2 | 1/4" | 2.94" | 1.88" | 5/8" | 1/2" | 1/2 – 20 |
| MIX-04-06-K2 | 1/4" | 3.29" | 2.23" | 5/8" | 5/8" | 5/8 – 18 |
| MIX-06-04-K2 | 3/8" | 3.26" | 1.89" | 11/16" | 7/16" | 7/16 – 24 |
| MIX-06-05-K2 | 3/8" | 3.37" | 2.00" | 3/4" | 1/2" | 1/2 – 20 |
| MIX-06-06-K2 | 3/8" | 3.65" | 2.28" | 3/4" | 5/8" | 5/8 – 18 |
| MIX-06-07-K2 | 3/8" | 2.97" | 1.60" | 11/16" | 11/16" | 11/16 – 18 |
| MIX-06-08-K2 | 3/8" | 3.35" | 1.98" | 3/4" | 3/4" | 3/4 – 18 |
| MIX-08-08-K2 | 1/2" | 3.55" | 2.21" | 7/8" | 3/4" | 3/4 – 18 |
| MIX-08-10-K2 | 1/2" | 3.19" | 1.85" | 3/4" | 7/8" | 7/8 – 18 |
