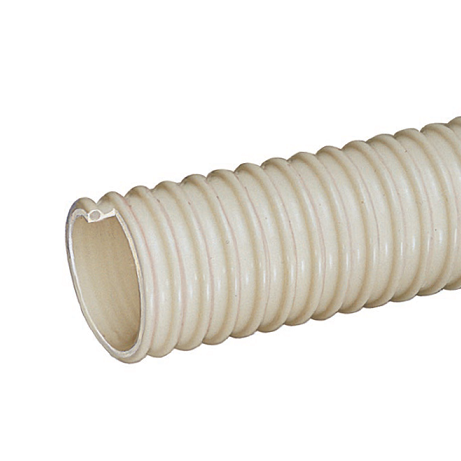

MH200X100 Tigerflex by Kuriyama | MH Series | Marine Hose | Suction Hose | 2" ID | PVC | 100ft Length
Kuriyama Tigerflex MH™ Series Marine PVC Suction Hose
Package Quantity: 100 FT
| Buy More, Save More! | |
| Quantity | Price Each |
| 5–14 | $465.07 |
| 15–29 | $420.54 |
| 30+ | $371.06 |
Discounts applied in cart/checkout.
Product Data:
Brand:
Series:
Color(s):
Internal Diameter:
Outer Diameter:
MAWP:
35
Tubing Construction:
Specifications and Approvals:
Special Properties:
SPECIFICATIONS
| Application: | Drain lines, Marine bilge discharge, Marine plumbing, Recreational vehicle (RV) plumbing | SAE Rating: | N/A |
|---|---|---|---|
| Other Ratings: | N/A | Tube: | PVC |
| Reinforcement: | Rigid PVC Helix | Cover: | N/A |
| Temperature Range: | -4 deg. F (-40 deg. C) to 150 deg. F (+65 deg. C) | Crimp Fittings: | N/A |
| Reusable Fittings: | N/A | Specifications | RoHS(10) |
| Other Features: | |||
|
|||
| Part Number | ID | ID | OD | OD | Working Pressure (PSI) | Vacuum Rating (in. Hg) | Approx. Bending Radius | Standard Length | Weight (Lbs/Ft) | ||
|---|---|---|---|---|---|---|---|---|---|---|---|
| (in.) | (mm) | (in.) | (mm) | 68 deg. F | 104 deg. F | 68 deg. F | 104 deg. F | (in @ 68 deg. F) | (ft.) | ||
| MH100X100 | 1" | 25.4mm | 1.22" | 31.0mm | 45 PSI | 15 PSI | Full | 24 in.Hg | 1" | 100ft | 0.15 lbs |
| MH125X100 | 1-1/4" | 32.0mm | 1.49" | 38.0mm | 40 PSI | 12 PSI | Full | 24 in .Hg | 1.5" | 100ft | 0.20 lbs |
| MH150X100 | 1-1/2" | 38.1mm | 1.77" | 45.0mm | 40 PSI | 12 PSI | Full | 24 in .Hg | 2" | 100ft | 0.25 lbs |
| MH200X100 | 2" | 50.8mm | 2.32" | 59.0mm | 35 PSI | 10 PSI | 26 in .Hg | 20 in .Hg | 2.5" | 100ft | 0.31 lbs |
