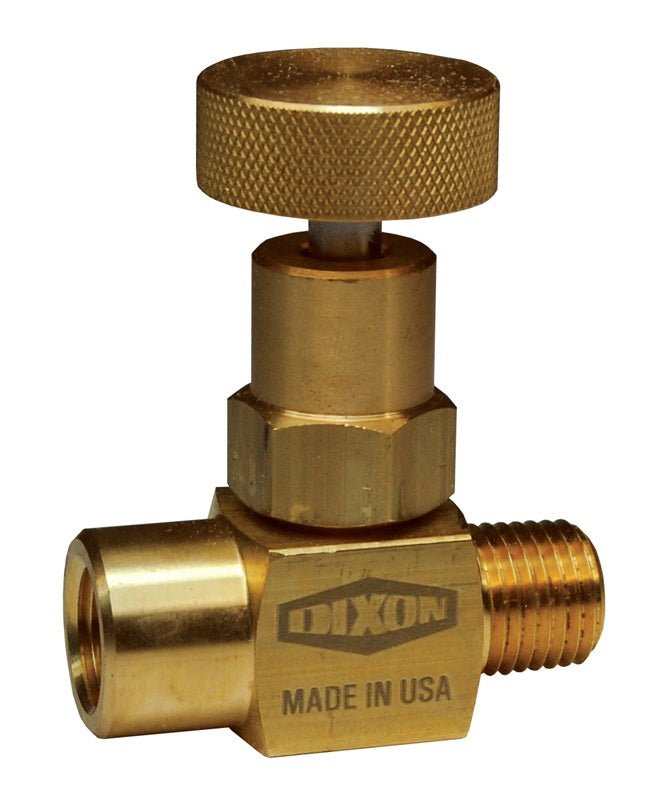

MFB101 by Dixon Valve | Mini Needle Valve | Knurled Knob Handle | 1/8" Male NPT x 1/8" Female NPT | Brass

MFB101 by Dixon Valve | Mini Needle Valve | Knurled Knob Handle | 1/8" Male NPT x 1/8" Female NPT | Brass

Sale price$60.22

Dixon Valve & Coupling
Mini Needle Valve
Buy More, Save More!
Quantity Price Each
10–39 $56.61
40–79 $51.19
80+ $45.17
Discounts applied in cart/checkout.

Product Data:

Shape:

Straight

Ends Configuration:
  • 1/8in Female NPT
  • 1/8in Male NPT
Material(s):
  • Brass
Features:
  • FKM O-ring seal and PTFE back-up ring below the threads protects from corrosion and galling.
  • Stem threads are rolled for strength and ease of operation.
Materials:
  • Stems: 316 stainless steel
Specifications:
  • Metal-to-metal hard seat design is 100% helium leak tested to 1 x 10-4 ml/s at 200 PSI.
  • 1/8" and 1/4" are orifice size: 0.172", flow coefficient: 0.42.
  • 1/2": orifice size are 0.187", flow coefficient: 0.44, hex body.
Part Number Material NPT Size Handle Style PSI @ 200°F
Male NPT x Female NPT
MFB101 Brass 1/8-27 Knurled Knob Handle 6000 PSI
MFB102 Brass 1/4-18 Knurled Knob Handle 6000 PSI
MFC101 Zinc Nickel Plated Steel 1/8-27 T Design Handle 10000 PSI
MFC102 Zinc Nickel Plated Steel 1/4-18 T Design Handle 10000 PSI
MFC404 Zinc Nickel Plated Steel 1/2-14 T Design Handle 10000 PSI
MFS101 316 Stainless Steel 1/8-27 T Design Handle 10000 PSI
MFS102 316 Stainless Steel 1/4-18 T Design Handle 10000 PSI
MFS404 316 Stainless Steel 1/2-14 T Design Handle 10000 PSI
Female NPT x Female NPT
FFB101 Brass 1/8-27 Knurled Knob Handle 6000 PSI
FFB102 Brass 1/4-18 Knurled Knob Handle 6000 PSI
FFC101 Zinc Nickel Plated Steel 1/8-27 T Design Handle 10000 PSI
FFC102 Zinc Nickel Plated Steel 1/4-18 T Design Handle 10000 PSI
FFC404 Zinc Nickel Plated Steel 1/2-14 T Design Handle 10000 PSI
FFS101 316 Stainless Steel 1/8-27 T Design Handle 10000 PSI
FFS102 316 Stainless Steel 1/4-18 T Design Handle 10000 PSI
FFS404 316 Stainless Steel 1/2-14 T Design Handle 10000 PSI

Dixon Valve & Coupling

Dixon, founded in 1916, is a premier manufacturer and supplier of hose couplings, valves, dry disconnects, swivels, and other fluid transfer and control products. Our global reach includes a wide range of products for numerous industries including petroleum exploration, refining, transportation, chemical processing, food and beverage, steel, fire protection, construction, mining, and manufacturing.
