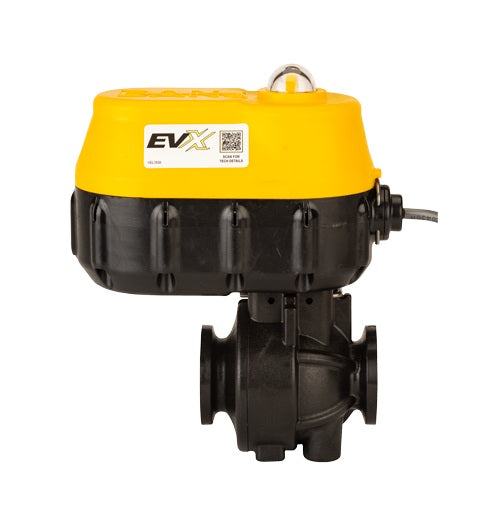

MEVXR100 by Banjo | Manifold Flange Connection | MEVX Regulating Electric Valve | Full Port | 1" Pipe Size | 1" Opening Thru Ball | FKM Seals | Polypropylene

MEVXR100 by Banjo | Manifold Flange Connection | MEVX Regulating Electric Valve | Full Port | 1" Pipe Size | 1" Opening Thru Ball | FKM Seals | Polypropylene

Sale price$403.93

Banjo® Liquid Handling Products
Manifold Flange Connection | MEVX Regulating Electric Valve | Full Port
Buy More, Save More!
Quantity Price Each
5–14 $379.69
15–29 $343.34
30+ $302.95
Discounts applied in cart/checkout.

Product Data:

Series:
  • MEVX Series
MAWP:

300

Shape:

Straight
Features:
  • 12-volt DC operated.
  • 24-volt available.
  • Open/closed indicator.
  • ON/OFF has 3/4 second response.
  • Regulating has 4 second response.
  • Open / Close verification available.
  • IP68 waterproof.
  • -0 to 150F (-18 to 65C) operating.
  • -67 to 221F (-55 to 105C) storage.
  • On/Off Actuator rated to 500,000 cycles.
  • Regulating Actuator rated to 250,000 cycles.
  • Valve rated to 50,000 cycles leak-free.
  • Bolted valves have the same exact dimensions as our legacy EV valves.
  • Additional protocols available including CAN/ISO BUS.
Materials:
  • 316 stainless steel ball & stem
  • Poly ball available on bolted valves
  • Stainless steel hardware
  • Fiberglass reinforced polypropylene
  • PTFE seats
  • FKM stem seals
On/Off:
  • Red = +12V DC
  • Black = Ground
  • White = +12VDC (Open) 0VDC (Close)
4 Wire Regulating:
  • Red = +12V DC (Open)
  • White = Ground (Open)
  • Black = +12V DC (Close)
  • Green = Ground (Close)
Part Number Description Max
PSI		 Pipe
Size		 Opening
Thru Ball		 Optional
Handle
Kit
MEVXR100 1" Full Port Electric Valve 300 PSI 1" 1" VP20153SH
