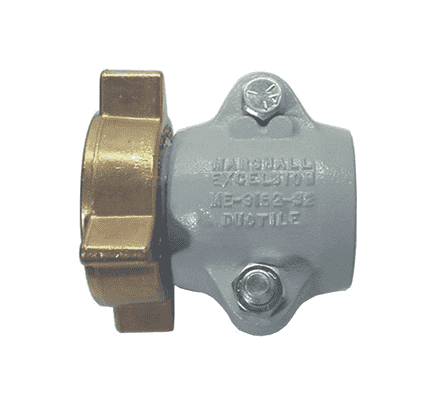

ME3162-32S Dixon Valve LP Gas Clamp Style Hose Coupling - 3-1/4" Female Acme - Steel
Dixon

ME3162-32S Dixon Valve LP Gas Clamp Style Hose Coupling - 3-1/4" Female Acme - Steel

Sale price$648.31

Dixon Valve
LP Gas Clamp Style Coupling

Product Data:

Shape:

Straight

Ends Configuration:
  • 2in Hose Barb
  • 3-1/4in Female
Material(s):
  • Steel
  • Brass
Features:
  • Clamp Style Hose Couplings
  • Clamp sections and hose barbs are made of steel and ductile iron making them usable in both LP gas and NH3 applications.
  • The 32B and 32S sizes offer female Acme swivels to eliminate the need to add additional weight and bulk to the hose assembly.
Part Number Hose Barb Size Thread Size Material Weight (Lbs)
ME3162-16 1" 1" MNPT Steel Nipple with 2 Piece Ductile Iron Clamp 2.0600
ME3162-20 1-1/4" 1-1/4" MNPT Steel Nipple with 2 Piece Ductile Iron Clamp 3.6800
ME3162-24 1-1/2" 1-1/2" MNPT Steel Nipple with 2 Piece Ductile Iron Clamp 4.3100
ME3162-32 2" 2" MNTP Steel Nipple with 2 Piece Ductile Iron Clamp 8.0000
ME3162-32B 2" 3-1/4" Female Acme Steel Nipple and Brass Nut with 2 Piece Ductile Iron Clamp 9.3800
ME3162-32S 2" 3-1/4" Female Acme Steel Nipple and Brass Nut with 2 Piece Ductile Iron Clamp 8.9400

Dixon Valve & Coupling

Dixon, founded in 1916, is a premier manufacturer and supplier of hose couplings, valves, dry disconnects, swivels, and other fluid transfer and control products. Our global reach includes a wide range of products for numerous industries including petroleum exploration, refining, transportation, chemical processing, food and beverage, steel, fire protection, construction, mining, and manufacturing.
