MBX-06-06-K2 by Kurt Hydraulic | K2 Series | 3/8" Hose Barb x 3/8" Male O-Ring Boss Swivel | Carbon Steel
Kurt Hydraulics
MBX - Male Boss O-Ring Swivel
| Buy More, Save More! | |
| Quantity | Price Each |
| 10–39 | $25.35 |
| 40–79 | $22.92 |
| 80+ | $20.23 |
Discounts applied in cart/checkout.
Product Data:
Series:
Shape:
Straight
Ends Configuration:
Material(s):
Special Properties:

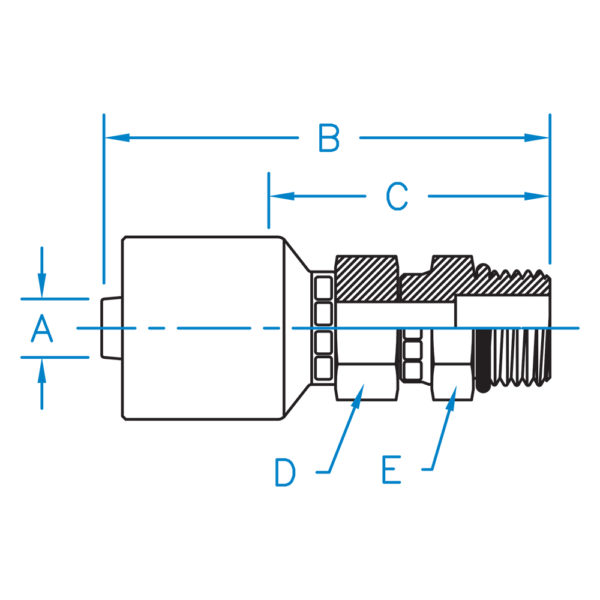

| Part Number | Hose I.D. (in.) | B | C | D | E | Thread |
|---|---|---|---|---|---|---|
| MBX-04-04-K2 | 1/4" | 2.60" | 1.54" | 9/16" | 11/16" | 7/16 – 20 |
| MBX-04-05-K2 | 1/4" | 2.48" | 1.42" | 9/16" | 3/4" | 1/2 – 20 |
| MBX-04-06-K2 | 1/4" | 2.52" | 1.46" | 9/16" | 3/4" | 9/16 – 18 |
| MBX-06-04-K2 | 3/8" | 2.87" | 1.50" | 11/16" | 11/16" | 7/16 – 20 |
| MBX-06-06-K2 | 3/8" | 2.90" | 1.53" | 11/16" | 3/4" | 9/16 – 18 |
| MBX-06-08-K2 | 3/8" | 2.99" | 1.62" | 3/4" | 15/16" | 3/4 – 16 |
| MBX-08-08-K2 | 1/2" | 3.02" | 1.70" | 11/16" | 15/16" | 3/4 – 16 |
| MBX-08-10-K2 | 1/2" | 3.09" | 1.77" | 11/16" | 1" | 7/8 – 14 |
