MB-04-08-K2 by Kurt Hydraulics | K2 Style Hydraulic Fitting | 1/4" Hose Barb x 1/2" Male O-Ring Boss | Carbon Steel
Kurt Hydraulics
Male Boss O-Ring Rigid
| Buy More, Save More! | |
| Quantity | Price Each |
| 10–39 | $17.19 |
| 40–79 | $15.55 |
| 80+ | $13.72 |
Discounts applied in cart/checkout.
Product Data:
Series:
Shape:
Straight
Ends Configuration:
Material(s):

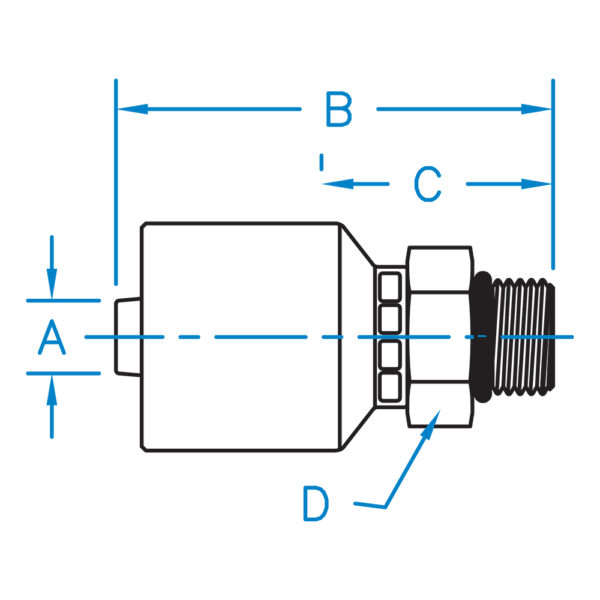

| Part Number | Hose I.D. (in.) | B | C | D | Thread |
|---|---|---|---|---|---|
| MB-04-04-K2 | 1/4" | 1.83" | 0.74" | 5/8" | 7/16"-20 |
| MB-04-05-K2 | 1/4" | 1.81" | 0.75" | 5/8" | 1/2"-20 |
| MB-04-06-K2 | 1/4" | 1.95" | 0.89" | 11/16" | 9/16"-18 |
| MB-04-08-K2 | 1/4" | 2.06" | 1.00" | 7/8" | 3/4"-16 |
| MB-06-06-K2 | 3/8" | 2.12" | 0.89" | 11/16" | 9/16"-18 |
| MB-06-08-K2 | 3/8" | 2.17" | 0.94" | 7/8" | 3/4"-16 |
| MB-06-10-K2 | 3/8" | 2.46" | 1.09" | 1" | 7/8"-14 |
| MB-08-06-K2 | 1/2" | 2.30" | 0.99" | 11/16" | 9/16"-18 |
| MB-08-08-K2 | 1/2" | 2.35" | 1.01" | 7/8" | 3/4"-16 |
| MB-08-10-K2 | 1/2" | 2.48" | 1.14" | 1-1/16" | 7/8"-14 |
| MB-08-12-K2 | 1/2" | 2.56" | 1.22" | 1-1/4" | 1-1/16"-12 |
