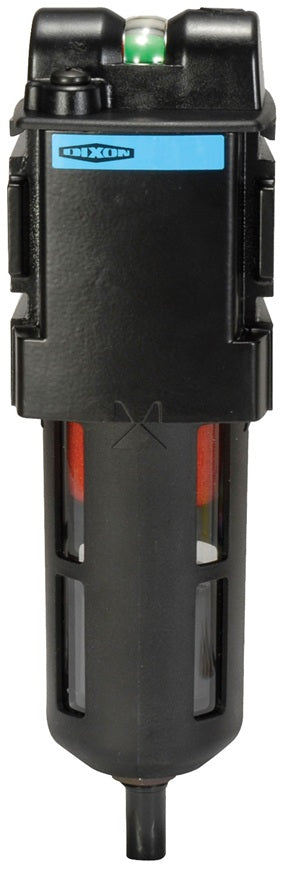

M18-02M Wilkerson by Dixon Valve | M18-Series | Compact Coalescing Filter | 1/4" Size | 36 SCFM | Manual Drain | 1.72 oz. Compact Transparent Bowl & Guard

M18-02M Wilkerson by Dixon Valve | M18-Series | Compact Coalescing Filter | 1/4" Size | 36 SCFM | Manual Drain | 1.72 oz. Compact Transparent Bowl & Guard

Sale price$180.31
Buy more, save moreDiscounts applied in cart/checkout.
Features:
  • Modern design and appearance.
  • Light weight.
  • High flow capacity.
  • 1.72 oz. bowl.
  • The differential pressure indicator changes from green to red with pressure loss.
Specifications:
  • Maximum operating conditions: 150 PSIG (10.3 bar) and -13°F to 125°F (-25°C to 52°C)
  • SCFM ratings at 150 PSIG inlet pressure.
  • A standard airline filter should be installed as a pre-filter when using a coalescing filter.
Dimensions:
With Compact Transparent Bowl and Guard Size Flow (SCFM)
Part Number
Automatic Drain		 Part Number
Manual Drain
M18-02A M18-02M 1/4" 36 SCFM
M18-03A M18-03M 3/8" 36 SCFM
M18-04A M18-04M 1/2" 36 SCFM

Additional Product Data:

Brand:
  • Wilkerson
Series:
  • M18 Series

Dixon Valve & Coupling

Dixon, founded in 1916, is a premier manufacturer and supplier of hose couplings, valves, dry disconnects, swivels, and other fluid transfer and control products. Our global reach includes a wide range of products for numerous industries including petroleum exploration, refining, transportation, chemical processing, food and beverage, steel, fire protection, construction, mining, and manufacturing.
