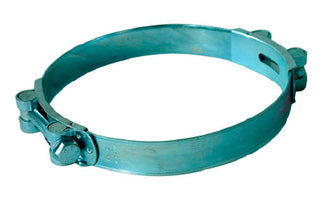

M10DC-325 by Midland | Buchanan Maxiclamp | M10DC Series | 30mm Width | Clamp Range: 12.80" to 13.78" | Silver Zinc Plated Steel Band

M10DC-325 by Midland | Buchanan Maxiclamp | M10DC Series | 30mm Width | Clamp Range: 12.80" to 13.78" | Silver Zinc Plated Steel Band

Sale price$78.38

Midland Industries
Buchanan M10DC Maxiclamp
Buy More, Save More!
Quantity Price Each
5–19 $73.68
20–59 $66.62
60+ $58.79
Discounts applied in cart/checkout.

Product Data:

Material(s):
  • Silver Zinc Plated Steel
Clamp Width:

30mm

Minimum Clamp I.D.:

12.8"
Features:
  • Silver (clear) zinc plated steel Band/Bridge/Trunnion/Sleeve/Bolt.
  • 10mm silver zinc plated steel bolts
  • 1.7mm thick x 30mm wide band
  • Suggested installation torque 30 Nm (22 Ft lbs)
  • Minimum breaking torque 40 Nm (29.5 ft lbs)
Part Number Size Range
M10DC-86 86mm - 91mm 3.38" - 3.58"
M10DC-92 92mm - 97mm 3.62" - 3.82"
M10DC-104 104mm - 112mm 4.09" - 4.41"
M10DC-113 113mm - 121mm 4.45" - 4.76"
M10DC-122 122mm - 130mm 4.80" - 5.12"
M10DC-131 131mm - 139mm 5.16" - 5.47"
M10DC-140 140mm - 148mm 5.51" - 5.83"
M10DC-149 149mm - 161mm 5.87" - 6.34"
M10DC-162 162mm - 174mm 6.38" - 6.85"
M10DC-175 175mm - 187mm 6.89" - 7.36"
M10DC-188 188mm - 200mm 7.40" - 7.87"
M10DC-200 200mm - 220mm 7.87" - 8.66"
M10DC-220 220mm - 240mm 8.66" - 9.45"
M10DC-240 240mm - 260mm 9.45" - 10.24"
M10DC-260 260mm - 280mm 10.24" - 11.02"
M10DC-280 280mm - 300mm 11.02" - 11.81"
M10DC-300 300mm - 325mm 11.81" - 12.80"
M10DC-325 325mm - 350mm 12.80" - 13.78"
M10DC-350 350mm - 375mm 13.78" - 14.76"
M10DC-375 375mm - 400mm 14.76" - 15.75"
M10DC-400 400mm - 425mm 15.75" - 16.73"
M10DC-425 425mm - 450mm 17.73" - 17.72"
M10DC-450 450mm - 475mm 17.72" - 18.70"
