M-DL04-06-12-K2 by Kurt Hydraulic | K2 Series | 1/4" Hose Barb x M12X1.5 Male Din Light 24° Seat | Carbon Steel
Kurt Hydraulics
Din Light 24° Seat Male Rigid
| Buy More, Save More! | |
| Quantity | Price Each |
| 10–39 | $60.65 |
| 40–79 | $54.84 |
| 80+ | $48.39 |
Discounts applied in cart/checkout.
Product Data:
Series:
Shape:
Straight
Ends Configuration:
Material(s):

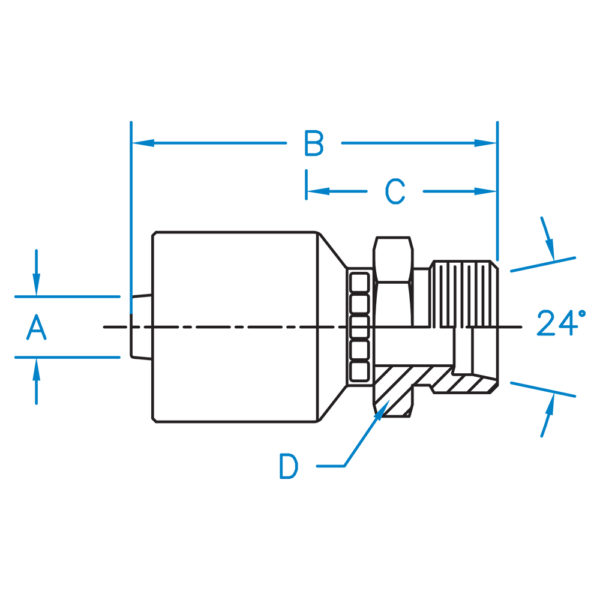

| Part Number | Hose I.D. (in.) | B | C | D | Thread |
|---|---|---|---|---|---|
| M-DL04-06-12-K2 | 1/4" | 1.86" | 0.80" | 5/8" | M12 X 1.5 |
| M-DL04-08-14-K2 | 1/4" | 1.86" | 0.80" | 5/8" | M14 X 1.5 |
| M-DL04-10-16-K2 | 1/4" | 2.10" | 1.04" | 11/16" | M16 X 1.5 |
| M-DL06-10-16-K2 | 3/8" | 2.43" | 1.06" | 11/16" | M16 X 1.5 |
| M-DL06-12-18-K2 | 3/8" | 2.39" | 1.02" | 3/4" | M18 X 1.5 |
| M-DL06-15-22-K2 | 3/8" | 2.43" | 1.06" | 7/8" | M22 X 1.5 |
| M-DL08-12-18-K2 | 1/2" | 2.42" | 1.08" | 7/8" | M18 X 1.5 |
| M-DL08-15-22-K2 | 1/2" | 2.45" | 1.11" | 7/8" | M22 X 1.5 |
