M-DH06-12-20-K2 by Kurt Hydraulic | K2 Series | 3/8" Hose Barb x M20X1.5 Male Din Heavy 24° Seat | Carbon Steel

M-DH06-12-20-K2 by Kurt Hydraulic | K2 Series | 3/8" Hose Barb x M20X1.5 Male Din Heavy 24° Seat | Carbon Steel

Sale price$70.62

Kurt Hydraulics
Din Heavy 24° Seat Male Rigid
Buy More, Save More!
Quantity Price Each
10–39 $66.38
40–79 $60.03
80+ $52.97
Discounts applied in cart/checkout.

Product Data:

Series:
  • K2 Series
Shape:

Straight

Ends Configuration:
  • 3/8in Hose Barb
  • S12 Male DIN

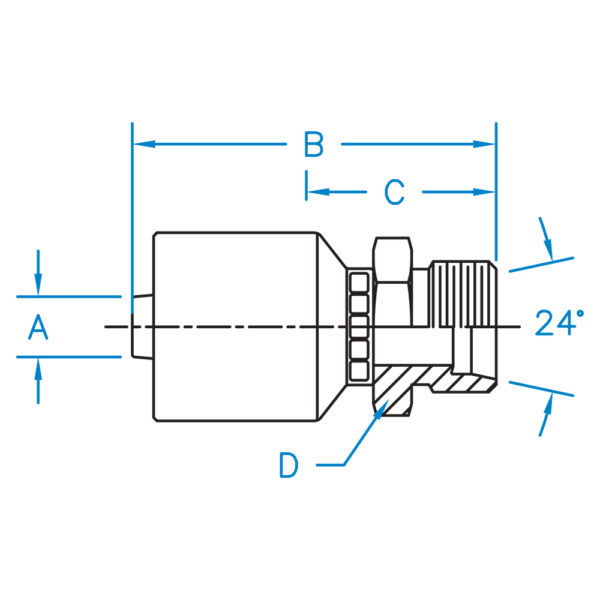

Part Number Hose I.D. (in.) B C D Thread
M-DH04-08-16-K2 1/4" 2.10" 1.04" 11/16" M16 X 1.5
M-DH04-10-18-K2 1/4" 2.10" 1.04" 3/4" M18 X 1.5
M-DH06-08-16-K2 3/8" 2.43" 1.06" 11/16" M16 X 1.5
M-DH06-12-20-K2 3/8" 2.43" 1.06" 15/16" M20 X 1.5
M-DH06-14-22-K2 3/8" 2.52" 1.15" 7/8" M22 X 1.5
M-DH08-16-24-K2 1/2" 2.53" 1.19" 1" M24 X 1.5

Kurt Hydraulics

Kurt Hydraulics has been a U.S. manufacturer of hydraulic couplings and
systems for over 35 years. We offer a full line of hydraulic couplings and a complete line of high quality hydraulic hose tested beyond SAE specifications. Kurt Hydraulics’ hose and couplings are sold through a comprehensive network of distributors in North America.
