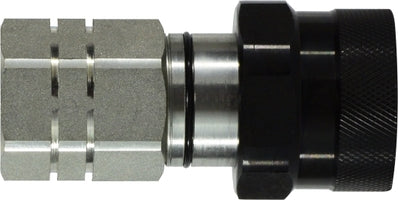

LSQVEP24SF by Midland | Hydraulic Quick Disconnect | Flat Face VEP Thread Lock Female Coupler | 1-1/2" Body Size | 1-1/2" Female NPT | Steel

LSQVEP24SF by Midland | Hydraulic Quick Disconnect | Flat Face VEP Thread Lock Female Coupler | 1-1/2" Body Size | 1-1/2" Female NPT | Steel

Sale price$578.50

Midland Industries
Hydraulic Quick Disconnects: Flat Face VEP Thread Lock - Steel

Applications:
- Widely used in public equipment.
- Portable construction equipment.
- Hydraulic tools.
- Vehicles
Buy More, Save More!
Quantity Price Each
5–14 $543.79
15–29 $491.73
30+ $433.88
Discounts applied in cart/checkout.

Product Data:

Shape:

Straight

Ends Configuration:
  • 1-1/2in Male VEP Flat Face QD Interchange
  • 1-1/2in Female NPT
Material(s):
  • Steel
Features:
  • Standard seal material is NBR
  • New valve design provides better resistance from high flow and the pressure of impulse, thus providing advanced performance.
  • Special nipple design for connecting under pressure, allows connection and disconnection with high residual pressures.
  • The LSQ-VEP series employs a threaded sleeve locking mechanism, mates with matching male threads on the coupler.
  • New plating treatment provides advanced anti-rust performance.
  • LSQ-VEP series couplings employ flush valving when connecting or disconnecting, therefore only a small amount of fluid can be lost during disconnecting or air inclusion during reconnection.
  • The Anti-Blowout bonded seal is designed to prevent blow-out or damage during severe service conditions.
  • Machined form solid steel barstock for durability. Compatible with most other VEP series.
  • Test Fluid-Oil = 200 SUS.
  • Temperature Range -20°C +120°C
Flat Face VEP Thread Lock Female Coupler Flat Face VEP Thread Lock Female Plug
Part Number Body
Size		 Female
NPT		 LS D A Rated
Pressure		 Rated
Flow		 Part Number Body
Size		 Female
NPT		 LP D A Rated
Pressure		 Rated
Flow
LSQVEP12SF
(LSQ-VEP-12-SF) 		1/2" 1/2" 4.09" 1.13" 0.67" 7000 PSI 12 GPM LSQVEP12PF
(LSQ-VEP-12-PF) 		1/2" 1/2" 4.09" 1.13" 0.67" 7000 PSI 12 GPM
LSQVEP34SF
(LSQ-VEP-34-SF) 		3/4" 3/4" 4.49" 2.13" 0.79" 7000 PSI 50 GPM LSQVEP34PF
(LSQ-VEP-34-PF) 		3/4" 3/4" 4.49" 2.13" 0.79" 7000 PSI 50 GPM
LSQVEP1SF
(LSQ-VEP-1-SF) 		1" 1" 5.28" 2.33" 0.83" 6000 PSI 88 GPM LSQVEP1PF
(LSQ-VEP-1-PF) 		1" 1" 5.28" 2.33" 0.83" 6000 PSI 88 GPM
LSQVEP20SF
(LSQ-VEP-20-SF) 		1-1/4" 1-1/4" 5.71" 2.72" 0.83" - - LSQVEP20PF
(LSQ-VEP-20-PF) 		1-1/4" 1-1/4" 5.71" 2.72" 0.83" - -
LSQVEP24SF
(LSQ-VEP-24-SF) 		1-1/2" 1-1/2" 7.41" 3.63" 0.83" 5000 PSI 152 GPM LSQVEP24PF
(LSQ-VEP-24-PF) 		1-1/2" 1-1/2" 7.41" 3.63" 0.83" 5000 PSI 152 GPM
