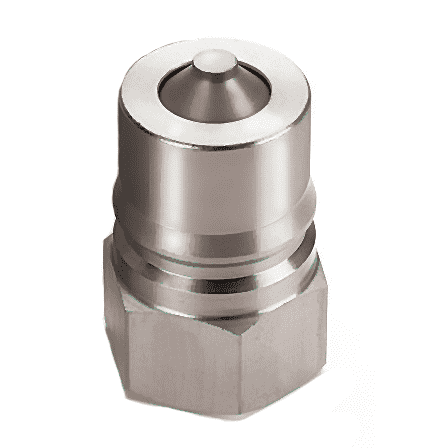

LL2K16192 Hansen® by Danfoss | HK 1-8 Series | Quick Disconnect Coupling | 1/4" Female NPTF Valved x 1/4" ISO 7241-1-B | Male Plug | EPDM Seal | 303 Stainless Steel

LL2K16192 Hansen® by Danfoss | HK 1-8 Series | Quick Disconnect Coupling | 1/4" Female NPTF Valved x 1/4" ISO 7241-1-B | Male Plug | EPDM Seal | 303 Stainless Steel

Sale price$29.58

Eaton HK 1-8 Series - ISO 7241-1 B Interchange - Plugs (Male) - Stainless Steel
Buy More, Save More!
Quantity Price Each
10–39 $27.81
40–79 $25.14
80+ $22.19
Discounts applied in cart/checkout.

Product Data:

Shape:

Straight

Material(s):
  • 303 Stainless Steel
Seal Material(s):
  • EPDM

Eaton's HK Series stainless steel is a general purpose industrial interchange coupling available in valved or non-valved designs, offered in 303/316 grades of stainless steel for excellent corrosion resistance in rugged applications. The HK Series features a ball latch mechanism with automatic self-sealing poppet valves.

SPECIFICATIONS

Applications & Markets:
  • Agriculture
  • Chemical
  • Fluid Transfer
  • Food and Beverage
  • General Industry
  • Law Enforcement / Rescue
  • Hydraulic Tool
  • Nuclear
  • Oil and Gas
  • Transportation
  • Trucks
  • Construction
  • Consumer Products
  • HVAC
  • Aerospace
  • Medical
Features: Meets dimensional requirements to ISO Standard 7241-1 Series B 303/316 Stainless Steel construction for greater corrosion resistance and fluid compatibility Self-sealing poppet valve design provides excellent high and low pressure sealing Standard body material: 303 or 316 Stainless Steel Standard seal material: Buna-N Seal Options available: PTFE, Neoprene, EPDM, FKM or Kalrez®
Seal Elastomer Data
Elastomer Buna-N Neoprene EPDM **not compatible with mineral-based greases or oils FKM (Fluorocarbon) PTFE Kalrez®
Application Specification None None None MIL-R-25897 Contact Eaton for additional information Contact Eaton for additional information
Max. Operation Temperature Range -40°C to +121°C 40°F to +250°F -54°C to +100°C -65°F to +212°F -54°C to +149°C -65°F to +300°F -29°C to +204°C -15°F to +400°F Contact Eaton for additional information Contact Eaton for additional information

Physical Characteristics

Series Body Size ISO Size Nominal Flow Diameter Max. Operating Pressure Rated Flow Air Inclusion Fluid Loss
in mm mm bar psi lpm gpm cc.max. cc.max.
1HK 1/8 5 4.4 207 3000 3 0.8 0.6 0.5
2HK 1/4 6.3 5.9 186 2700 12 3 1.2 0.9
3HK 3/8 10 7.8 152 2200 23 6 2.9 2.1
4HK 1/2 12.5 10 155 2250 45 12 3.6 3.5
6HK 3/4 20 17 138 2000 100 26 11.5 9.3
8HK 1 25 19.6 103 1500 189 50 18.0 16.9
10HK 1 1/4.* - 26.7 83 1200 288 76 48.0 48.0
12HK 1 1/2 40 35.1 104 1500 375 99 91.3 91.3
20HK 2 1/2 50 46 49 700 757 200 209.9 209.9

*For questions related to vacuum please contact Eaton **No ISO Standard available for the 10HK Dimensions

NV = No Valve | VAA = Valve Actuator Assembly | VB = Bleeder Valve (Plugs Only)
Part Number Seal Elastomer Valved Body Size ISO Size Thread Size (Female) Dimensions
303 Stainless Steel 316 Stainless Steel NPTF BSPP SAE C D E Hex
in in in(mm) in(mm) in(mm) in(mm)
LL2K16192 ML2K16192 EPDM† Yes 1/4 6.3 1/4-18 - - 1.52(38.6) 0.87(22.1) 0.56(14.2) 0.75(19.1)
LL2K16BS192 ML2K16BS192 EPDM† Yes 1/4 6.3 - 1/4-19 - 1.52(38.6) 0.87(22.1) 0.56(14.2) 0.75(19.1)
LL3K21BS192 - EPDM† Yes 3/8 10 - 3/8-19 - 1.76(44.7) 1.01(25.7) 0.61(15.5) 0.88(22.4)
LL4KP26192 ML4KP26192 EPDM Yes 1/2 12.5 1/2-14 - - 2.03(51.6) 1.30(33.0) 0.76(19.3) 1.13(28.7)
LL6KP31192 ML6KP31192 EPDM Yes 3/4 20 3/4-14 - - 2.36(59.9) 1.52(38.6) 0.71(18.0) 1.31(33.3)
LL6KP31236 - EPDM Yes 3/4 20 3/4-14 - - 2.36(59.9) 1.52(38.6) 0.71(18.0) 1.31(33.3)
LL6KP31BS192 - EPDM Yes 3/4 20 - 3/4-14 - 2.36(59.9) 1.52(38.6) 0.71(18.0) 1.31(33.3)
LL8KP36192 ML8KP36192 EPDM Yes 1 25 1-11 1/2 - - 2.85(72.4) 1.88(47.8) 0.97(24.6) 1.63(41.4)
