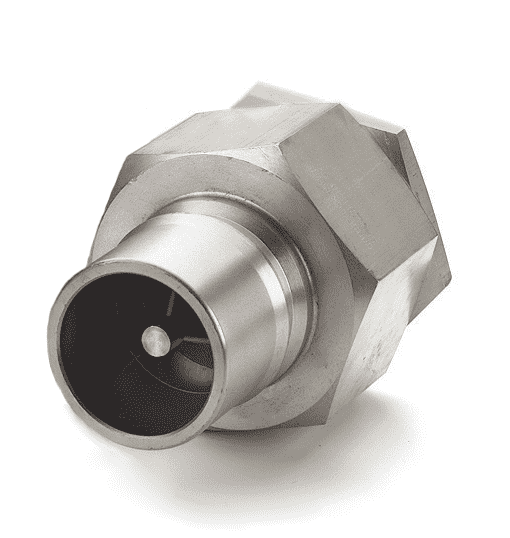

LL10K41192 Hansen® by Danfoss | HK 10/12/20 Series | 1-1/4" Female NPTF x 1-1/4" ISO 7241-1 B Interchange Quick Disconnect | Male Plug | EPDM Seal | 303 Stainless Steel

LL10K41192 Hansen® by Danfoss | HK 10/12/20 Series | 1-1/4" Female NPTF x 1-1/4" ISO 7241-1 B Interchange Quick Disconnect | Male Plug | EPDM Seal | 303 Stainless Steel

Sale price$700.02

Eaton HK 10/12/20 Series - ISO 7241-1 B Interchange - Plugs (Male) - Stainless Steel
Buy More, Save More!
Quantity Price Each
5–14 $658.02
15–29 $595.02
30+ $525.02
Discounts applied in cart/checkout.

Product Data:

Shape:

Straight

Material(s):
  • 303 Stainless Steel
Seal Material(s):
  • EPDM
Product Features:
  • Self-sealing poppet valves provide excellent high and low pressure sealing.
  • 303/316 Stainless steel construction for greater corrosion resistance and fluid compatibility
Applications & Markets:
  • Agriculture
  • Hydraulic Tool
  • General Industry
  • Construction
  • Fluid Transfer
  • Transportation
  • Military
  • Law Enforcement/Rescue
  • Chemical
  • Oil and Gas
  • Consumer Products
  • HVAC
  • Food and Beverage
  • Trucks
  • Aerospace
  • Medical
ISO Standard:
  • Meets dimensional requirements to ISO standard 7241-1 Series B.
Materials:
  • Standard body material: 303 or 316 Stainless Steel.
  • Standard seal material: Nitrile (NBR) (40°F to +250°F | -40°C to +121°C)
European Pressure Equipment Directive:
  • Couplings with nominal diameters up to and including 25mm are designed and manufactured under Article 4.3 of the European Pressure Equipment Directive 2014/68/EU. Couplings with nominal diameters greater than 25 mm are designed and manufactured in accordance with stipulations of Module A of the European Pressure Equipment Directive 2014/68/EU. They should not be used to convey unstable gases.

Group 1 = Hazardous media / Group 2 = Other media

Series Body Size ISO Size Nominal Flow
Diameter		 Max. Operating
Pressure		 Rated
Flow*		 Air
Inclusion		 Fluid
Loss
Non Hazardous
Liquids & Gases
(Group 2)		 Hazardous
Liquids & Gases
(Group 1)
in. mm mm bar psi bar psi lpm gpm cc.max. cc.max.
1HK 1/8" 5mm 4.4mm 344 bar 5,000 psi 344 bar 5,000 psi 3 lpm 0.8 gpm 0.6 cc.max. 0.5 cc.max.
2HK 1/4" 6.3mm 5.9mm 255 bar 3,700 psi 255 bar 3,700 psi 12 lpm 3 gpm 1.2 cc.max. 0.9 cc.max.
3HK 3/8" 10mm 7.8mm 255 bar 3,700 psi 255 bar 3,700 psi 23 lpm 6 gpm 2.9 cc.max. 2.1 cc.max.
4HK 1/2" 12.5mm 10mm 293 bar 4,250 psi 293 bar 4,250 psi 45 lpm 12 gpm 3.6 cc.max. 3.5 cc.max.
6HK 3/4" 20mm 17mm 242 bar 3,500 psi 242 bar 3,500 psi 100 lpm 26 gpm 11.5 cc.max. 9.3 cc.max.
8HK 1" 25mm 19.6mm 207 bar 3,000 psi 207 bar 3,000 psi 189 lpm 50 gpm 18.0 cc.max. 16.9 cc.max.
10HK 1-1/4"** - 26.7mm 118 bar 1,700 psi 37 bar 537 psi 288 lpm 76 gpm 48.0 cc.max. 48.0 cc.max.
12HK 1-1/2" 40mm 35.1mm 152bar 2,200 psi 29 bar 421 psi 375 lpm 99 gpm 91.3 cc.max. 91.3 cc.max.
20HK 2-1/2" 50mm 46mm 104bar 1,500 psi 21 bar 305 psi 757 lpm 200 gpm 209.9 cc.max. 209.9 cc.max.

For questions related to vacuum please contact Danfoss.
** No ISO Standard available for the 10HK
Plugs (Male) (Figure 2)
Part Number
303 Stainless Steel		 Body Size ISO
Size		 Type Female
Thread		 Figure Dimensions
EPDM Seal A B Hex C D E Hex
LL10K41192 1-1/4" - Plug/Male 1-1/4-11-1/2 Fem. NPTF 2 - - - 4.25"
(108.0mm)		 2.74"
(69.6mm)		 2.33"
(59.2mm)		 2.38"
(60.5mm)
LL12K46192 1-1/2" 40mm Plug/Male 1-1/2-11-1/2 Fem. NPTF 2 - - - 4.76"
(120.9mm)		 2.74"
(69.6mm)		 2.67"
(67.8mm)		 2.38"
(60.5mm)

* ISO 7241-1 Series B does not include 1-1/4 inch body size couplings; therefore, Series 10HK is not covered by this standard
A=Overall Length, B=Maximum Diameter
C=Overall Length, D=Maximum Diameter, E=Exposed Length when Connected
To obtain connected length of coupling, add dimensions A (Fig. 1) and E (Fig. 2) together.
To obtain connected length of coupling, add dimensions A (Fig. 3) and E (Fig. 4) together.
