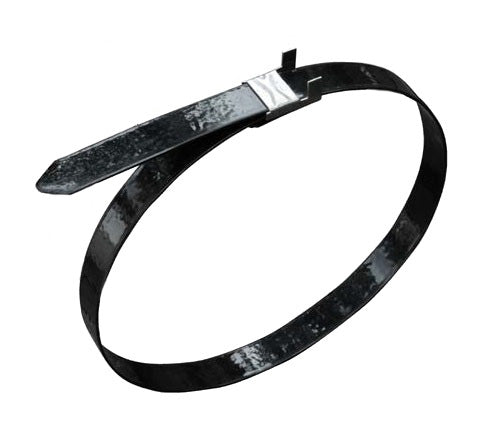

LFAC-F1015M040-A900 by Band-It | BAND-FAST® Cable Cleat Alternative Band | Single Wrap | 5/8" Width | 15.75" Length | PPA Coated | 316 Stainless Steel | 100/Bag
Minimum Order Quantity: 4 Units
Package Quantity: 100 EA
Buy more, save moreDiscounts applied in cart/checkout.
BAND-IT® Band-Fast Cable Cleat Alternative Band
What are the main product features?
- PPA Coated BAND-FAST™ Clamps with clips have 0.38mm 316SS band thickness (1.2mm thick with coating)
- Increased profitability
- Space saving with lower profile finish
- Logistical and handling benefits (easier to move around site in bulk)
- 316 grade stainless steel
- High Performance PPA 571 coating eliminates the need for protective channel/lining
- Zero Halogen, low smoke & fume
- Materials covered by multiple type approvals
- Large diameter adjustment - fewer part numbers to order
- Tested by independent third party facility to the latest Cable Cleat Standard IEC61914:2015 for resistance to electromechanical force.
Which application tools are compatible?
- C07569 Bantam Tool.
Which sizes are available?
| Part Number | Band Ref. | Buckle/Clip Ref. | Width | Length | Single/Double Wrap | *Max Cable OD (Single Cable Config.) | *Max Cable OD (Trefoil Cable Config.) | *Max Cable OD (Quadrafoil Cable Config.) | Package Quantity | Passed IEC61914: 2015 Short Circuit Test in Trefoil up to (kA peak) |
|---|---|---|---|---|---|---|---|---|---|---|
| LFAC-F1015M040-A900 | AE435 | AE455 | 5/8" | 15.75" | Single | 2.95" | 1.10" | 0.98" | 100/Bag | 50.8kA |
| LFAC-F1015M050-A900 | AE435 | AE455 | 5/8" | 19.68" | Single | 3.93" | 1.69" | 1.45" | 100/Bag | 50.8kA |
| LFAC-F1015M060-A900 | AE435 | AE455 | 5/8" | 23.62" | Single | 5.11" | 2.24" | 1.96" | 100/Bag | 50.8kA |
| LFAC-F1015M070-A900 | AE435 | AE455 | 5/8" | 27.56" | Single | 6.29" | 2.75" | 2.36" | 100/Bag | 50.8kA |
| LFFC-F1015M050-A900 | AE435 | LE155 | 5/8" | 19.68" | Double | 2.16" | 0.82" | 0.70" | 100/Bag | 76.3kA |
* Note: Maximum cable OD are for a guide only.
Additional Product Data:
Brand:
Series:
Material(s):
Special Properties:
Clamp Width:
0.625"
Tie Length:
15.75"
