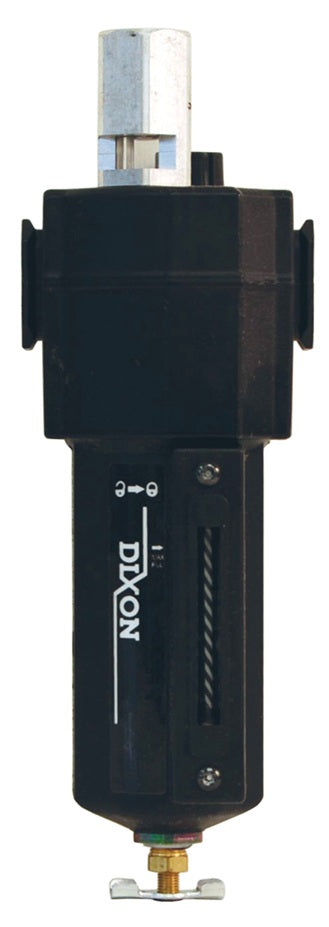

L74M-3MBPX by Dixon Valve | L74M Series 1 | Standard Micro-Fog Lubricator | with Pyrex Sight Feed Dome | 3/8" Port Size | 114 SCFM | 7 oz. Metal Bowl with Sight Glass

L74M-3MBPX by Dixon Valve | L74M Series 1 | Standard Micro-Fog Lubricator | with Pyrex Sight Feed Dome | 3/8" Port Size | 114 SCFM | 7 oz. Metal Bowl with Sight Glass

Sale price$861.52

Dixon Valve
L74M Series 1 | Standard Micro-Fog Lubricator with Pyrex Sight Feed Dome

Designed for use with alcohol or other anti-freeze agents when units are installed in cold temperature environments.

Micro-fog lubricators are used for applications containing one or more points of lubrication, cylinders, and multiple or single tools.

- 7 oz. reservoir
- In-line or modular installation


In stock
Buy More, Save More!
Quantity Price Each
5–14 $809.83
15–29 $732.29
30+ $646.14
Discounts applied in cart/checkout.

Product Data:

Series:
  • L74M Series 1
Applications:
  • Designed for use with alcohol or other anti-freeze agents when units are installed in cold temperature environments.
  • Micro-fog lubricators are used for applications containing one or more points of lubrication, cylinders, and multiple or single tools.
  • Air flow through the lubricator lifts oil from the reservoir to the sight-feed dome; oil is dropped into the fog generator and atomized into a fine mist; lightweight particles are delivered downstream for lubrication; heavier particles fall back into the reservoir.
Features:
  • 7 oz. reservoir.
  • In-line or modular installation.
  • Quick release bayonet bowl.
  • Micro-fog design delivers aerosol mist.
Specifications:
  • Recommended lubricants: misting type oil rated 50 to 200 SSU (ISO Grade 7 to 46) at 100°F (37°C)
  • Inlet pressure: 250 PSI
  • Maximum temperature: 175°F (79°C)
Dimensions:
Metal Bowl with Sight Glass
Part Number		 Port Size Flow (SCFM)
L74M-3MBPX 3/8" 114 SCFM
L74M-4MBPX 1/2" 154 SCFM
L74M-6MBPX 3/4" 142 SCFM
