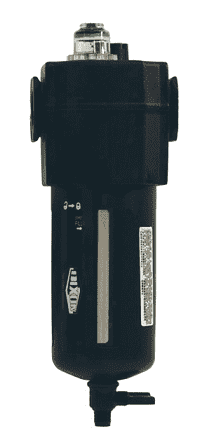

L74C-6 Dixon Valve Series 1 Oil-Fog Lubricators - 3/4" Standard with Transparent Bowl - 186 SCFM
Dixon

L74C-6 Dixon Valve Series 1 Oil-Fog Lubricators - 3/4" Standard with Transparent Bowl - 186 SCFM

Sale price$249.76

Series 1 Oil-Fog Lubricators - Standard Norgren Cross Over Part Number: L74C-6AP-QPN On hose assemblies, pressure rating is the lower of either the rating of the coupling or the hose at 70 deg. F.

Product Data:
Applications:
  • Oil-fog lubricators, identified by a green adjusting screw, are used for lubricating a single air tool or air motor, and are located as near the device as possible.
  • All the oil visible dropping through the transparent sight-feed dome goes to the airstream.
  • L72C, L73C and L74C OIL-FOG lubricators can be filled under pressure.
Features:
  • 7 oz. reservoir.
  • In-line or modular installation.
  • Quick release bayonet bowl.
  • Micro-fog design delivers aerosol mist.
  • Can be filled under pressure.
  • Recommended lubricants: misting type oil rated 50 to 200 SSU (ISO Grade 7 to 46) at 100 deg. F
  • Maximum operating conditions:
    • Transparent bowl: 150 PSI and 125 deg. F
    • Metal bowl: 250 PSI and 175 deg. F
Part Number Port Size Description SCFM Max PSI Min/Max Temp Weight (Lbs.)
L74C-3 3/8" Transparent Bowl 118 150 (10.20 bar) 0 deg. F / 125 deg. F (-17.78 deg. C / 51.67 deg. C) 1.8400
L74C-4 1/2" Transparent Bowl 192 150 (10.20 bar) 0 deg. F / 125 deg. F (-17.78 deg. C / 51.67 deg. C) 1.7500
L74C-6 3/4" Transparent Bowl 186 150 (10.20 bar) 0 deg. F / 125 deg. F (-17.78 deg. C / 51.67 deg. C) 1.7100
L74C-3MB 3/8" Metal Bowl 118 250 (17.01 bar) 0 deg. F / 175 deg. F (-17.78 deg. C / 79.44 deg. C) 1.8200
L74C-4MB 1/2" Metal Bowl 192 250 (17.01 bar) 0 deg. F / 175 deg. F (-17.78 deg. C / 79.44 deg. C) 1.7800
L74C-6MB 3/4" Metal Bowl 186 250 (17.01 bar) 0 deg. F / 175 deg. F (-17.78 deg. C / 79.44 deg. C) 1.7500

Dixon Valve & Coupling

Dixon, founded in 1916, is a premier manufacturer and supplier of hose couplings, valves, dry disconnects, swivels, and other fluid transfer and control products. Our global reach includes a wide range of products for numerous industries including petroleum exploration, refining, transportation, chemical processing, food and beverage, steel, fire protection, construction, mining, and manufacturing.
