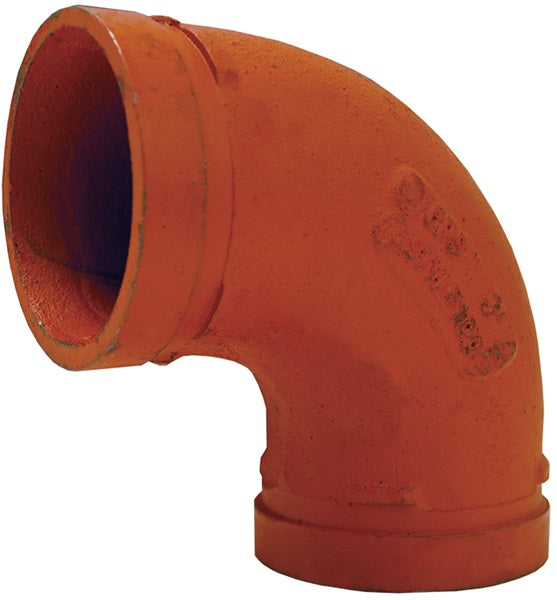

L506 by Dixon Valve | Series-90 | Grooved End Fitting | 90° Elbow | 6" Grooved End x 6" Grooved End | Ductile Iron

L506 by Dixon Valve | Series-90 | Grooved End Fitting | 90° Elbow | 6" Grooved End x 6" Grooved End | Ductile Iron

Sale price$131.08

Dixon Valve
Grooved End Fitting | Series-90

Designed to provide minimum pressure drop and uniform strength.
Buy More, Save More!
Quantity Price Each
5–19 $123.22
20–59 $111.42
60+ $98.31
Discounts applied in cart/checkout.

Product Data:

Series:
  • Series-90
Shape:

90 Degree

Ends Configuration:
  • 6in Grooved End
  • 6in Grooved End
  • Some Ends Match
Comparable to:
  • Victaulic's #10
  • Grinnell's #7050
Material:
  • Ductile iron body with rust inhibiting paint.
Specifications:
  • Maximum operating pressure: 500 PSI at ambient temperature 70°F (21°C).
Approvals:
  • Underwriters Listed
  • Factory Mutual approved
Ductile Iron
Part Number		 Nominal
Size		 Dimensions
C to E
L502 2" 3-1/4"
L5025 2-1/2" 3-3/4"
L503 3" 4-1/4"
L504 4" 5"
L506 6" 6-1/2"
L508 8" 7-3/4"

Dixon Valve & Coupling

Dixon, founded in 1916, is a premier manufacturer and supplier of hose couplings, valves, dry disconnects, swivels, and other fluid transfer and control products. Our global reach includes a wide range of products for numerous industries including petroleum exploration, refining, transportation, chemical processing, food and beverage, steel, fire protection, construction, mining, and manufacturing.
