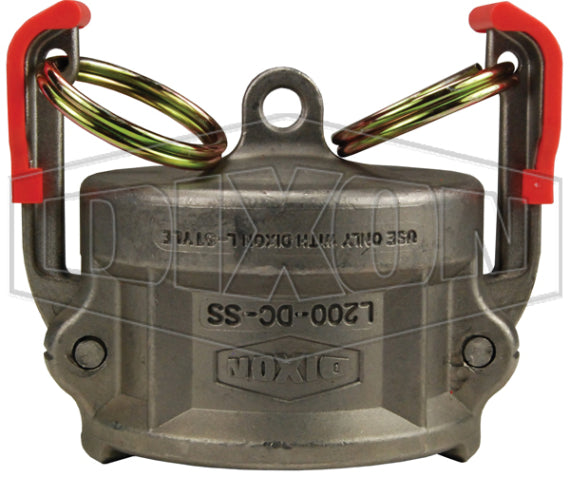

L200-DC-SS by Dixon Valve | Vent-Lock® Safety Cam & Groove Dust Cap | Type DC | 2" Size | 316 Stainless Steel

L200-DC-SS by Dixon Valve | Vent-Lock® Safety Cam & Groove Dust Cap | Type DC | 2" Size | 316 Stainless Steel

Sale price$102.71

Dixon Valve
Vent-Lock® Safety Cam & Groove | Type DC | Dust Caps

Transfer of fluids and solids, with a safer disconnection.
Buy More, Save More!
Quantity Price Each
5–19 $96.55
20–59 $87.30
60+ $77.03
Discounts applied in cart/checkout.

Product Data:

Brand:
  • Vent-Lock
  • King Crimp
Cam & Groove Type:

Type DC

Ends Configuration:
  • 2in Female Cam & Groove
Features:
  • Safety release cam & groove couplings permit the release of static pressure when disconnecting hose assemblies.
  • Venting system protects operator from being sprayed with hazardous or non-hazardous fluids or solids.
  • Does not interchange with standard cam & groove products; use only with Dixon L-style fittings.
  • Safety orange cam arms.
Specifications:
  • Rated to 250 PSI; recommendation based on the use of mating Dixon® L-style fittings at ambient temperature 70°F (21°C) with standard nitrile rubber seal installed.
    • 1", 1-1/2" and 2" sizes have a maximum working pressure of 250 PSI.
    • 3" maximum working pressure 150 PSI with King Crimp® ferrules, crimp sleeves, and bands at 125 PSI.
    • 4" maximum working pressure 150 PSI with King Crimp ferrules, crimp sleeves, and bands at 100 PSI.
316 Stainless Steel
Part Number		 Size
L100-DC-SS 1"
L150-DC-SS 1-1/2"
L200-DC-SS 2"

Pressure rating recommendation is based on the use of mating Vent-Lock™ L-style fittings at ambient temperature 70°F (21°C) with standard Nitrile Rubber seal installed, for use at elevated temperature or other unusual operating conditions, consult Dixon.

Dixon Valve & Coupling

Dixon, founded in 1916, is a premier manufacturer and supplier of hose couplings, valves, dry disconnects, swivels, and other fluid transfer and control products. Our global reach includes a wide range of products for numerous industries including petroleum exploration, refining, transportation, chemical processing, food and beverage, steel, fire protection, construction, mining, and manufacturing.
