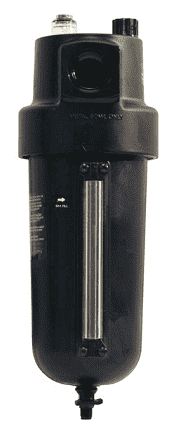

L17-600D Dixon Valve Series 1 Oil-Fog Lubricators - 3/4" Jumbo Metal Bowl with Sight Glass - 160 SCFM
Dixon

L17-600D Dixon Valve Series 1 Oil-Fog Lubricators - 3/4" Jumbo Metal Bowl with Sight Glass - 160 SCFM

Sale price$406.97

Series 1 Oil-Fog Lubricators - Jumbo Norgren Cross Over Part Number: L17-600-OPDA On hose assemblies, pressure rating is the lower of either the rating of the coupling or the hose at 70 deg. F.

Product Data:
Applications:
  • Oil-fog lubricators, identified by a green adjusting screw, are used for lubricating a single air tool or air motor, and are located as near the device as possible.
  • All the oil visible dropping through the transparent sight-feed dome goes to the airstream.
  • L72C, L73C and L74C OIL-FOG lubricators can be filled under pressure.
Features:
  • 1 qt. reservoir.
  • Oil level sight gauge.
  • One turn threaded bowl attachment permits easy maintenance.
  • Inlet pressure: 250 PSI at ambient temperature (70 deg. F).
  • Cannot be filled under pressure.
Part Number Port Size Description SCFM Max PSI Weight (Lbs.)
L17-600D 3/4" Metal Bowl with Sight Glass 160 250 (17.01 bar) 4.1820
L17-800D 1" Metal Bowl with Sight Glass 275 250 (17.01 bar) 3.5130
L17-A00D 1-1/4" Metal Bowl with Sight Glass 275 250 (17.01 bar) 4.1800
L17-B00D 1-1/2" Metal Bowl with Sight Glass 275 250 (17.01 bar) 4.0500

Dixon Valve & Coupling

Dixon, founded in 1916, is a premier manufacturer and supplier of hose couplings, valves, dry disconnects, swivels, and other fluid transfer and control products. Our global reach includes a wide range of products for numerous industries including petroleum exploration, refining, transportation, chemical processing, food and beverage, steel, fire protection, construction, mining, and manufacturing.
