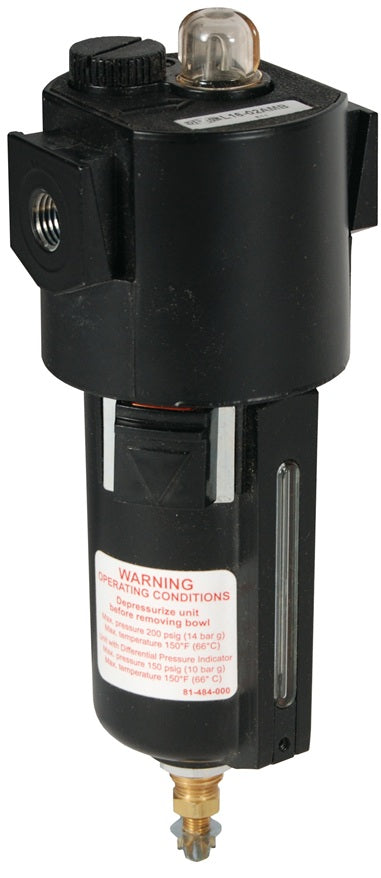

L16-04AMB Wilkerson EconOmist® by Dixon Valve | L16-Series | Compact Lubricator | 1/2" Size | 64.0 SCFM | 5 oz. Metal Bowl

L16-04AMB Wilkerson EconOmist® by Dixon Valve | L16-Series | Compact Lubricator | 1/2" Size | 64.0 SCFM | 5 oz. Metal Bowl

Sale price$180.72
Buy more, save moreDiscounts applied in cart/checkout.
Features:
  • 5 oz. bowl.
  • Full view sight dome.
  • Fill under pressure design.
Specifications:
  • Maximum operating conditions:
    • Transparent Bowl: 150 PSIG (10.3 bar) and 32°F to 125°F (0°C to 52°C)
    • Metal Bowl: 200 PSIG (13.8 bar) and 32°F to 150°F (0°C to 66°C)
  • FRL's are designed for air service only, unless otherwise indicated.
  • SCFM ratings at 150 PSIG inlet pressure.
Use:
  • The oil in the bowl can be filled or replenished without interrupting airflow or bleeding pressure from the system.
  • Once the oil-fill cap is removed, the bowl is depressurized and isolated from line pressure, and the bowl itself can then be removed for faster refill, if desired.
  • The bowl can be filled right to the top.
  • For all Wilkerson lubricators, use any petroleum-base, non-detergent light weight oil (SAE 10/150 SSU) which will readily break up into a mist, i.e., Mobil DTE light or comparable oil. Do not use any synthetic oil or oils containing additives or solvents.
Dimensions:
Transparent Bowl
Part Number		 Metal Bowl
Part Number		 Size Flow (SCFM)
L16-02A L16-02AMB 1/4" 36.1 SCFM
L16-03A L16-03AMB 3/8" 58.5 SCFM
L16-04A L16-04AMB 1/2" 64.0 SCFM

Additional Product Data:

Brand:
  • Wilkerson
Series:
  • EconOmist, L16 Series
