KH-STOPFUDIN525OP Stopflex by Kuriyama | Hydraulic Hose Safety Retention System | Nipple Retention System Open 24° Cone Connector (DIN) | Large Cutting Plate | M8 Size | 2.067" ID | 17.717" Length | Pack of 10
KH-STOPFUDIN525OP Stopflex by Kuriyama | Hydraulic Hose Safety Retention System | Nipple Retention System Open 24° Cone Connector (DIN) | Large Cutting Plate | M8 Size | 2.067" ID | 17.717" Length | Pack of 10

KH-STOPFUDIN525OP Stopflex by Kuriyama | Hydraulic Hose Safety Retention System | Nipple Retention System Open 24° Cone Connector (DIN) | Large Cutting Plate | M8 Size | 2.067" ID | 17.717" Length | Pack of 10

Sale price$598.80

Kuriyama of America Inc.

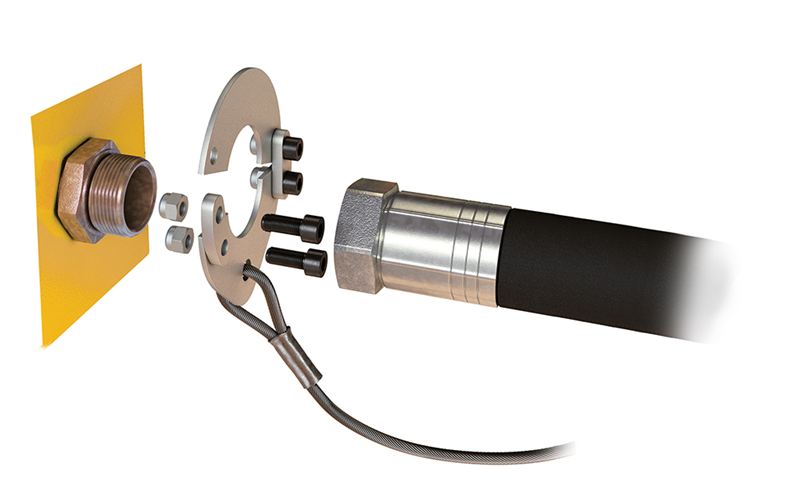

Stopflex | Hydraulic Hose Safety Retention System | KH-STOPFUDIN-OP | Nipple Retention System Open 24° Cone Connectors (DIN)

The Stopflex system is designed to safely dissipate pressure during a hose failure, and protect those in the vicinity from being struck by hose whip.

This Stopflex retention system is designed for DIN fittings. A highly engineered retention system that can be applied to hoses already installed.


Package Quantity: 10 Units

Buy More, Save More!
Quantity Price Each
5–14 $562.87
15–29 $508.98
30+ $449.10
Discounts applied in cart/checkout.

Product Data:

Brand:
  • Stopflex
Series:
  • KH-STOPFUDIN-OP Series
Specifications and Approvals:
  • ISO 4413
About:
  • Hydraulic hoses contain enormous potential energy while in operation, resulting from their high operating pressures, which are often in the thousands of PSI.
  • During a hose failure this energy becomes kinetic, transforming the hose into a dangerous whip hazard, potentially resulting in serious injury.
  • The Stopflex system is designed to safely dissipate this pressure, and protect those in the vicinity from being struck during a hose failure.
Features:
  • Stopflex enhances workplace safety and reduces the risk of injury or damage.
  • Effectively contains the dangerous whipping motion of a high-pressure hydraulic hose failure.
Specifications:
  • Stopflex is rigorously tested and validated to withstand real hydraulic system pressures, making it one of the only retention solutions fully aligned with ISO 4413's safety mandates.
Part Number Ø M Ø (in) SP./TH(in) L (in) MaximumOperatingPressure CuttingPlate
KH-STOPFUDIN305OP M6 1.201" 0.098" 17.717" 6090 PSI LARGE
KH-STOPFUDIN34OP M8 1.339" 0.098" 17.717" 6090 PSI LARGE
KH-STOPFUDIN365OP M8 1.437" 0.098" 17.717" 6090 PSI LARGE
KH-STOPFUDIN425OP M8 1.673" 0.098" 17.717" 6090 PSI LARGE
KH-STOPFUDIN455OP M8 1.791" 0.098" 17.717" 6090 PSI LARGE
KH-STOPFUDIN49OP M8 1.929" 0.098" 17.717" 6090 PSI LARGE
KH-STOPFUDIN525OP M8 2.067" 0.098" 17.717" 5583 PSI LARGE
KH-STOPFUDIN60OP M8 2.362" 0.098" 17.717" 5075 PSI LARGE

Kuriyama

Located in Schaumburg, Illinois, Kuriyama of America has been eminently successful in developing and marketing a complete line of thermoplastic hose and accessories. Their expansive product line consist of thermoplastic, rubber and metal hose products, along with accessories including couplings and fittings.
