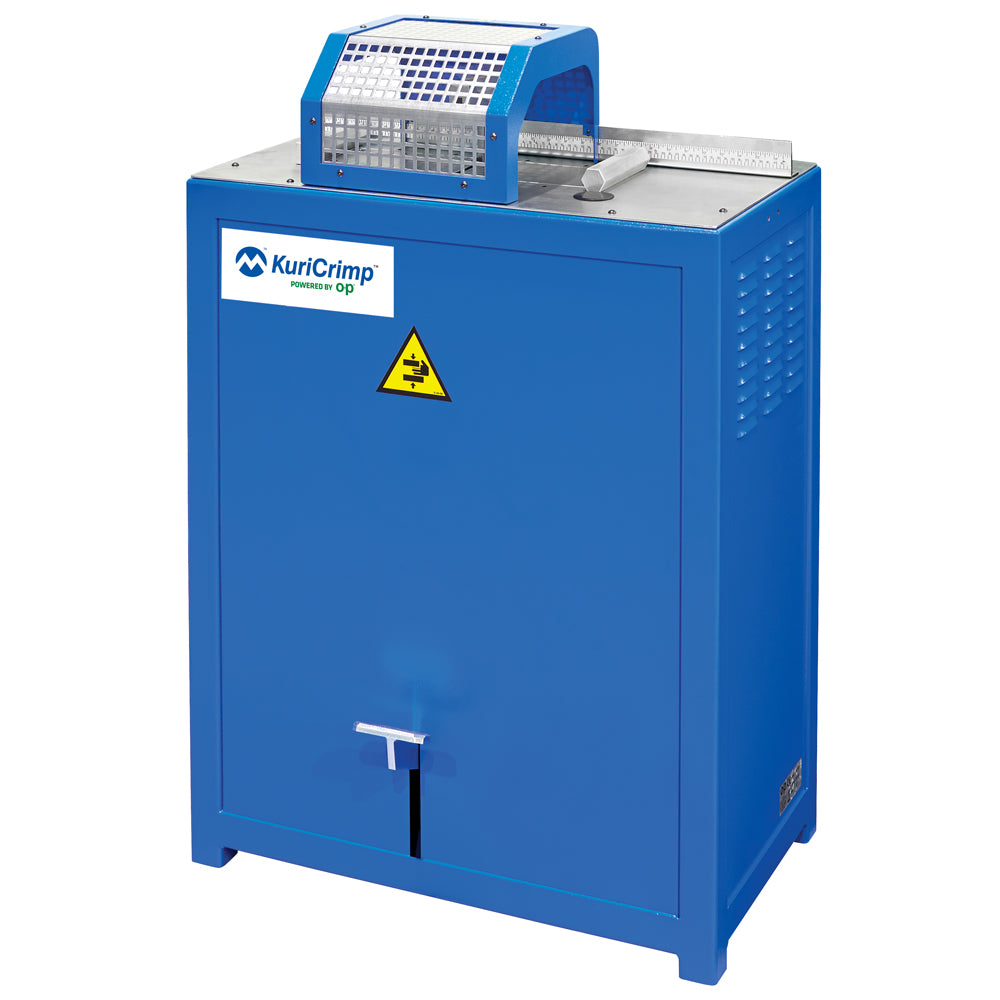

KCS-TF2-230/3 KuriCrimp™ by Kuriyama | KCS-TF2/E Series | Hose Saw | 4 HP (230 V) 3 PH Motor | For Hydraulic Hoses Up To 2" Four Spirals & 1-1/2" Six Spirals

KCS-TF2-230/3 KuriCrimp™ by Kuriyama | KCS-TF2/E Series | Hose Saw | 4 HP (230 V) 3 PH Motor | For Hydraulic Hoses Up To 2" Four Spirals & 1-1/2" Six Spirals

Sale price$7,912.31

Kuriyama of America Inc.
KuriCrimp™ | KCS-TF2 Series | Hose Saw

A stand alone unit ideal for cutting 2" four spiral and 1 1/2" six spiral hydraulic hose. The blade is recessed inside the base for additional safety.
Buy More, Save More!
Quantity Price Each
3–5 $7,437.57
6+ $7,121.08
Discounts applied in cart/checkout.

Product Data:

Brand:
  • KuriCrimp
Series:
  • KCS-TF2/E Series
Description:
  • A stand alone unit ideal for cutting 2" four spiral and 1 1/2" six spiral hydraulic hose. The blade is recessed inside the base for additional safety.
  • Suggested for use with KC3-H130 series crimpers.
Hose Capacity:
  • Hose Capacity for 1 - 2 Wire: 2 in
  • Hose Capacity for 4 Spiral: 2 in
  • Hose Capacity for 6 Spiral: 1-1/2 in
  • Hose Capacity for Industrial: 2 in
  • Max. Opening: 75 mm
Cutter Size:
  • Length: 33.1 in
  • Width: 21.7 in
  • Height: 45.3 in
  • Weight: 290 lb
  • Blade Diameter: 250 mm
Included Accessories:
  • Enclosed Blade Chamber.
  • Ventilation Port (Separate suction device required for fume extraction).
  • Serrated Blade (The included Serrated Blade is not recommended for use with hoses with a steel cover and/or containing steel helical reinforcement).
Part Number Motor Weight
KCS-TF2-230/3 4 HP (230 V) 3 PH 290 lb

Kuriyama

Located in Schaumburg, Illinois, Kuriyama of America has been eminently successful in developing and marketing a complete line of thermoplastic hose and accessories. Their expansive product line consist of thermoplastic, rubber and metal hose products, along with accessories including couplings and fittings.
