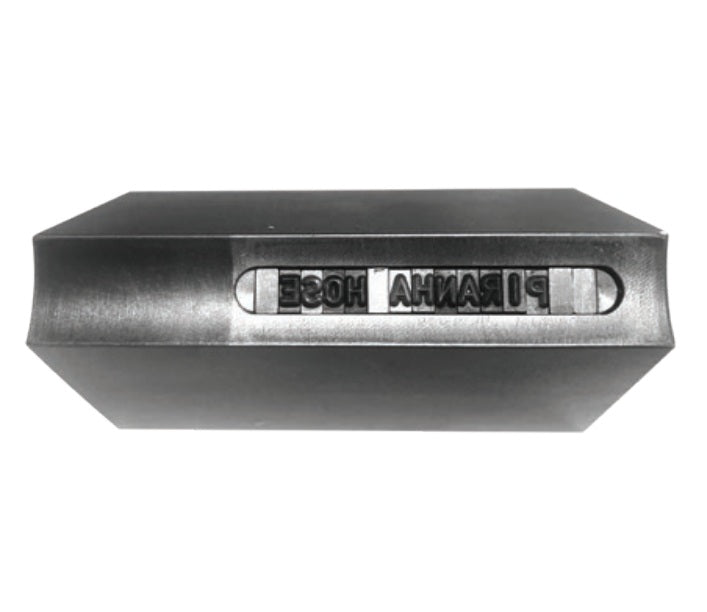

KCMARKH119-63 KuriCrimp Kuriyama KCMARKH Series Marking Die Segment has a 63.0 - 69.0mm Crimp Range. For KC1-H130, KC3-H130, KC1-H135, KC3-H135, KC3-H144 & KC3-H170 Series Crimpers.
KCMARKH119-63 KuriCrimp™ by Kuriyama | KCMARKH Series | Marking Die Segment | 63.0 - 69.0mm Crimp Range | For KC1-H130, KC3-H130, KC1-H135, KC3-H135, KC3-H144 & KC3-H170 Series Crimpers

KCMARKH119-63 KuriCrimp™ by Kuriyama | KCMARKH Series | Marking Die Segment | 63.0 - 69.0mm Crimp Range | For KC1-H130, KC3-H130, KC1-H135, KC3-H135, KC3-H144 & KC3-H170 Series Crimpers

Sale price$661.26

Kuriyama of America Inc.
KuriCrimp™ | KCMARKH Series | Marking Die Segment

Used in conjunction with the standarddie set for that size, marking die segments replace one of the eight standard die segments with one to which character blocks can be added in order to imprint on the ferrule.
Buy More, Save More!
Quantity Price Each
5–14 $621.58
15–29 $562.07
30+ $495.95
Discounts applied in cart/checkout.

Product Data:

Brand:
  • KuriCrimp
Series:
  • KCMARKH Series
Compatible Series:
  • KC1-H130 Series, KC3-H130 Series, KC1-H135 Series, KC3-H135 Series, KC3-H144 Series, KC3-H170 Series
About Marking Dies:
  • Imprints your own custom message, logo, or date code on the ferrule during the crimping process.
  • Purchase your own custom set of letters, numbers, symbols and spacer blocks; which can be arranged and rearranged in any manner to create various branding messages or date codes for hose traceability.
  • Used in conjunction with standard die set for that size, and replaces one of the eight standard die segments with marking die segment.
  • Marking varies in height from 1.5 mm to 4 mm, and in length from 10 to 15 characters, depending on die size.
Dies For KC1-H130, KC3-H130, KC1-H135, KC3-H135, KC3-H144 & KC3-H170 Series Crimpers
Part Number Crimp Range (mm) ClosedDiameter (mm) Length (mm) Weight(lbs/ea) AvailableCharacter Spaces Individual Character BlocksPart Number
KCMARKH119-12 12.0 - 14.0 12mm 60mm 1.5 lbs 10 KCHAR1.5MM
KCMARKH119-14 14.0 - 16.0 14mm 60mm 1.5 lbs 10 KCHAR1.5MM
KCMARKH119-16 16.0 - 19.0 16mm 60mm 1.5 lbs 15 KCHAR2MM
KCMARKH119-19 19.0 - 22.0 19mm 60mm 1.5 lbs 15 KCHAR2MM
KCMARKH119-22 22.0 - 25.0 22mm 60mm 1.5 lbs 15 KCHAR2MM
KCMARKH119-25 25.0 - 29.0 25mm 60mm 1.5 lbs 15 KCHAR2MM
KCMARKH119-29 29.0 - 34.0 29mm 70mm 1.5 lbs 15 KCHAR2MM
KCMARKH119-34 34.0 - 38.0 34mm 70mm 1.5 lbs 15 KCHAR3MM
KCMARKH119-38 38.0 - 42.0 38mm 85mm 1.5 lbs 15 KCHAR3MM
KCMARKH119-42 42.0 - 46.0 42mm 85mm 1.9 lbs 15 KCHAR3MM
KCMARKH119-46 46.0 - 50.0 46mm 95mm 1.9 lbs 15 KCHAR3MM
KCMARKH119-50 50.0 - 54.0 50mm 95mm 1.9 lbs 15 KCHAR3MM
KCMARKH119-54 54.0 - 58.0 54mm 110mm 1.9 lbs 15 KCHAR3MM
KCMARKH119-58 58.0 - 63.0 58mm 95mm 1.9 lbs 15 KCHAR3MM
KCMARKH119-63 63.0 - 69.0 63mm 120mm 1.9 lbs 15 KCHAR3MM
KCMARKH119-69 69.0 - 73.0 69mm 100mm 1.8 lbs 15 KCHAR3MM
KCMARKH119-73 73.0 - 77.0 73mm 120mm 1.5 lbs 15 KCHAR3MM
KCMARKH119-77 77.0 - 86.0 77mm 120mm 1.5 lbs 15 KCHAR3MM
KCMARKH119-86 86.0 - 90.0 86mm 120mm 1.5 lbs 15 KCHAR3MM
KCMARKH119-90 90.0 - 96.0 90mm 150mm 1.5 lbs 15 KCHAR3MM
KCMARKH119-96 96.0 - 103.0 96mm 120mm 1.5 lbs 15 KCHAR3MM
Dies For KC3-H144 & KC3-H170 Series Crimpers ONLY
Part Number Crimp Range (mm) ClosedDiameter (mm) Length (mm) Weight(lbs/ea) AvailableCharacter Spaces Individual Character BlocksPart Number
KCMARKH144-103 103.0 - 106.0 103mm 130mm 1.5 lbs 12 KCHAR4MM
KCMARKH144-106 106.0 - 111.0 106mm 130mm 1.5 lbs 12 KCHAR4MM
KCMARKH144-111 111.0 - 116.0 111mm 130mm 1.5 lbs 12 KCHAR4MM
KCMARKH144-116 116.0 - 121.0 116mm 130mm 1.5 lbs 12 KCHAR4MM
KCMARKH144-121 121.0 - 126.0 121mm 130mm 1.5 lbs 12 KCHAR4MM
KCMARKH144-126 126.0 - 131.0 126mm 130mm 1.5 lbs 12 KCHAR4MM
KCMARKH144-131 131.0 - 144.0 131mm 130mm 1.5 lbs 12 KCHAR4MM
