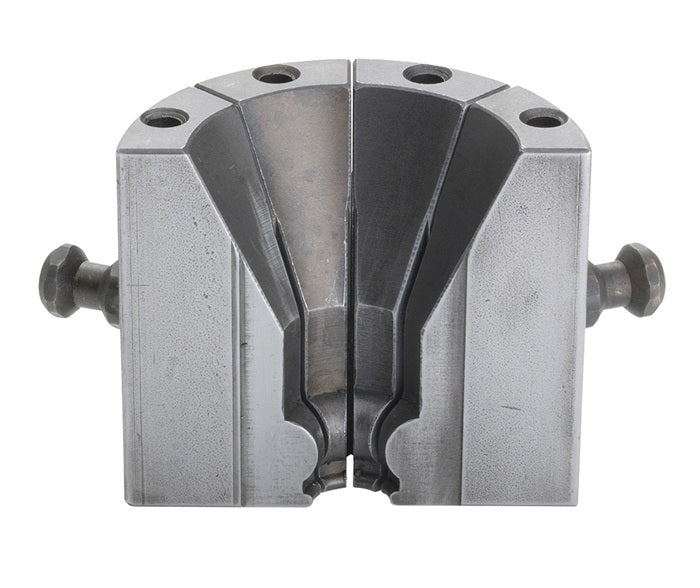

KCDV160-108 KuriCrimp™ by Kuriyama | V160 Series | Die for High Volume Crimper | 108.0 - 113.0mm Crimp Range

KCDV160-108 KuriCrimp™ by Kuriyama | V160 Series | Die for High Volume Crimper | 108.0 - 113.0mm Crimp Range

Sale price$1,193.91

Kuriyama of America Inc.
KuriCrimp™ | V160 Series | Die for High Volume Crimpers
Buy More, Save More!
Quantity Price Each
4–7 $1,122.28
8–14 $1,074.52
15+ $955.13
Discounts applied in cart/checkout.

Product Data:

Brand:
  • KuriCrimp
Series:
  • V160 Series
Compatible Series:
  • KC4-V160 Series
Dies | V160 Series
Die Number Crimp Range(mm) Closed Diameter(mm) Length(mm) Weight(lbs/ea)
KCDV160-103 103.0 - 106.0mm 103mm 135mm 12.2 lbs
KCDV160-106 106.0 - 111.0mm 106mm 135mm 12.2 lbs
KCDV160-108 108.0 - 113.0mm 108mm 135mm 12.2 lbs
KCDV160-111 111.0 - 116.0mm 111mm 135mm 12.2 lbs
KCDV160-116 116.0 - 121.0mm 116mm 135mm 12.2 lbs
KCDV160-121 121.0 - 126.0mm 121mm 135mm 12.2 lbs
KCDV160-126 126.0 - 131.0mm 126mm 135mm 12.2 lbs
KCDV160-131 131.0 - 136.0mm 131mm 135mm 12.2 lbs
KCDV160-139 139.0 - 144.0mm 139mm 135mm 12.2 lbs
KCDV160-164* 164.0 - 176.0mm 164mm 135mm 29.0 lbs
KCDV160-166* 166.0 - 178.0mm 166mm 135mm 29.0 lbs
KCDV160-178* 178.0 - 190.0mm 178mm 135mm 29.0 lbs

Kuriyama

Located in Schaumburg, Illinois, Kuriyama of America has been eminently successful in developing and marketing a complete line of thermoplastic hose and accessories. Their expansive product line consist of thermoplastic, rubber and metal hose products, along with accessories including couplings and fittings.
