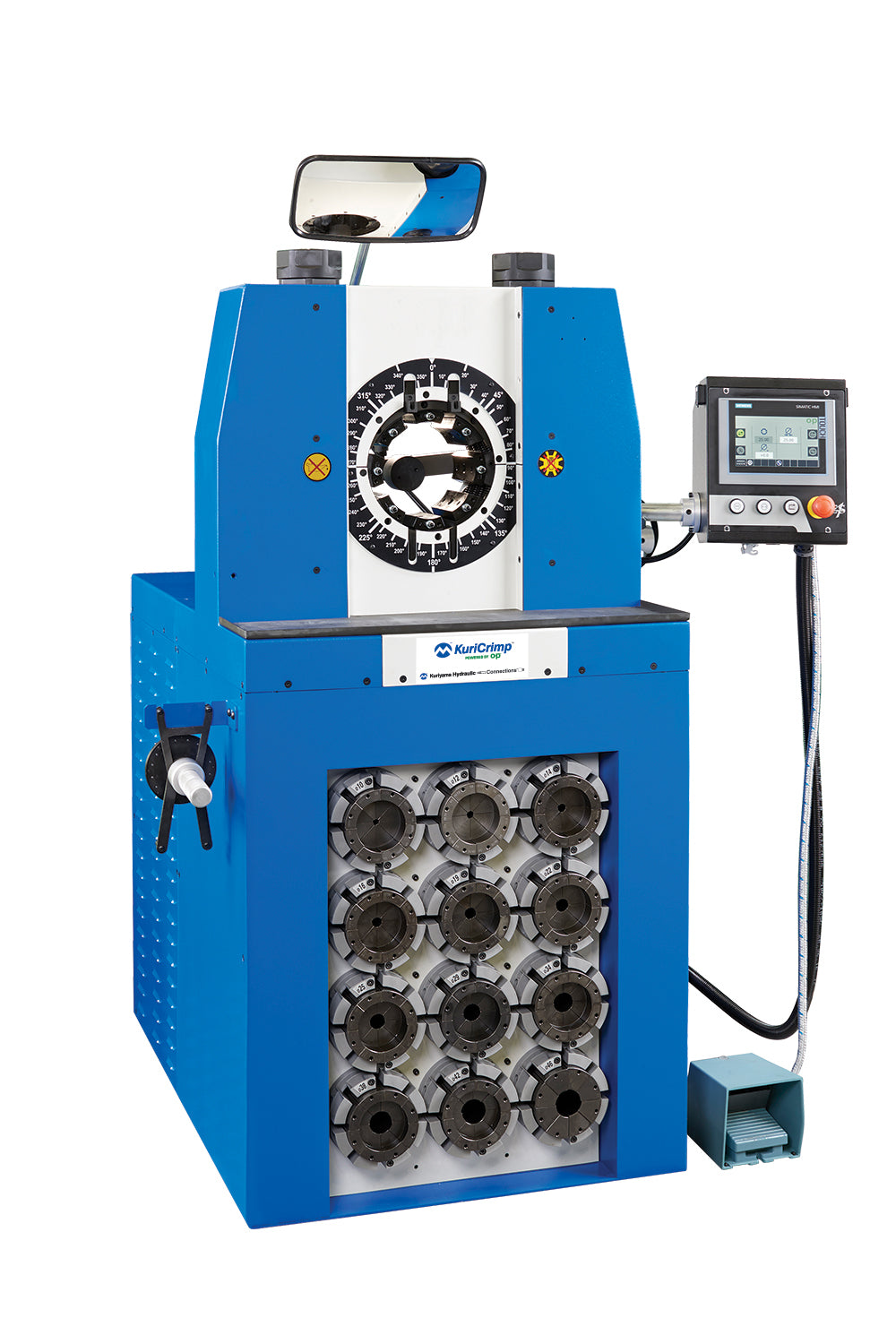

KC4-V159-230/3 KuriCrimp™ by Kuriyama | KC4-V159 Series | High Volume Crimper | 7.5 HP (230 V) 3 PH Motor | 330 Ton Crimping Force | Includes: Die Holder Base, Electric Foot Pedal, Fitting Orientation Protractor, Crimp Calculator

KC4-V159-230/3 KuriCrimp™ by Kuriyama | KC4-V159 Series | High Volume Crimper | 7.5 HP (230 V) 3 PH Motor | 330 Ton Crimping Force | Includes: Die Holder Base, Electric Foot Pedal, Fitting Orientation Protractor, Crimp Calculator

Sale price$56,345.06

Kuriyama of America Inc.
KuriCrimp™ | KC4-V159 Series | High Volume Crimper

A mass production hydraulic hose crimper, boasting an impressive 2,400** crimps per hour. (**Theoretical with a 1/2" @ 6mm hose).

Its back limit switch and advanced Siemen's ES4 computerized controller take efficiency to the highest level.

Handles a wide range of industrial hose as well up to 6".

Reduction dies included.

Features: Greaseless Operation, Silent Pump, and a fixed 6 o'clock position allowing the hose to rest inside the chamber rather than having to be centered.
Buy More, Save More!
Quantity Price Each
3–5 $52,964.36
6+ $50,710.55
Discounts applied in cart/checkout.

Product Data:

Brand:
  • KuriCrimp
Series:
  • KC4-V159 Series
Hose Capacity (in):
  • 1 - 2 Wire: 2-1/2"
  • 4 SP / 6 SP: 2-1/2
  • 90º Fittings: 2-1/2
  • Industrial: 5* (* Up to 6" (depending on hose and coupling type)
Crimping Force (ton):
  • 330
Opening Diameter:
  • Max. Without Dies (mm / in): 228 / 8.98
  • Max. With Dies (mm / in): 201 / 7.91
  • By Die Size (mm / in): Die Size + 70 / 2.75
Crimper Size:
  • L x W x H (in): 39.3 x 45.6 x 63.6
  • Weight (lbs): 3,395
Control Mechanism:
  • Large, full-color, touch-screen display.
  • Stores up to 1,000 crimp specifications.
  • Built-in crimp diameter calculator.
  • USB port connection.
  • Optional upgrades such as digital caliper, history data save, barcode reader, webcam and WiFi connection.
Motor:
  • 7.5 HP (230 V) 3 PH
Hydraulic Fluid:
  • Type: ISO 46
  • Amount: 185L = 48.88 Gal.
  Part Number Description
KC4-V159-230/3 7.5 HP (230 V) 3 PH
330 Ton Crimping Force
Includes: Die Holder Base, Electric Foot Pedal, Fitting Orientation Protractor, Crimp Calculator
Included Accessories
Die Holder Base (12 pc.) PEDAL-ES
Electric Foot Pedal		 Fitting Orientation Protractor Crimp Calculator
Dies | V119 Series
Die Number Crimp Range(mm) Closed Diameter(mm) Length(mm) Weight(lbs/ea)
KCDV119-10 10.0 - 12.0mm 10mm 60mm 14.4 lbs
KCDV119-12 12.0 - 14.0mm 12mm 60mm 14.4 lbs
KCDV119-14 14.0 - 16.0mm 14mm 60mm 15.5 lbs
KCDV119-16 16.0 - 19.0mm 16mm 60mm 15.5 lbs
KCDV119-19 19.0 - 22.0mm 19mm 60mm 16.6 lbs
KCDV119-22 22.0 - 25.0mm 22mm 60mm 16.6 lbs
KCDV119-25 25.0 - 29.0mm 25mm 60mm 15.5 lbs
KCDV119-29 29.0 - 34.0mm 29mm 70mm 15.5 lbs
KCDV119-34 34.0 - 38.0mm 34mm 70mm 15.5 lbs
KCDV119-38 38.0 - 42.0mm 38mm 85mm 15.5 lbs
KCDV119-42 42.0 - 46.0mm 42mm 85mm 15.5 lbs
KCDV119-46 46.0 - 50.0mm 46mm 120mm 19.9 lbs
KCDV119-50 50.0 - 54.0mm 50mm 120mm 15.5 lbs
KCDV119-54 54.0 - 58.0mm 54mm 120mm 16.6 lbs
KCDV119-58 58.0 - 63.0mm 58mm 120mm 16.6 lbs
KCDV119-63 63.0 - 69.0mm 63mm 120mm 17.7 lbs
KCDV119-69 69.0 - 73.0mm 69mm 120mm 15.5 lbs
KCDV119-73 73.0 - 77.0mm 73mm 120mm 13.3 lbs
KCDV119-77 77.0 - 86.0mm 77mm 120mm 11.1 lbs
KCDV119-86 86.0 - 90.0mm 86mm 120mm 12.5 lbs
KCDV119-90 90.0 - 96.0mm 86mm 120mm 10.7 lbs
KCDV119-96 96.0 - 103.0mm 96mm 120mm 8.9 lbs
Dies | V159 Series
Die Number Crimp Range(mm) Closed Diameter(mm) Length(mm) Weight(lbs/ea)
KCDV159-103 103.0 - 106.0mm 103mm 126mm 12.2lbs
KCDV159-106 106.0 - 111.0mm 106mm 126mm 12.2lbs
KCDV159-111 111.0 - 116.0mm 111mm 126mm 12.2lbs
KCDV159-116 116.0 - 121.0mm 116mm 126mm 12.2lbs
KCDV159-121 121.0 - 126.0mm 121mm 126mm 12.2lbs
KCDV159-126 126.0 - 131.0mm 126mm 126mm 12.2lbs
KCDV159-131 131.0 - 136.0mm 131mm 126mm 12.2lbs
Optional Accessories:
DIECART-V119
Die Cart (24 pc.)		 ES4 Upgrades TABLE-KC
Mounted Side Table
Protection Net with
Activation Switch		 Back Limit Switch MIRROR-H135/170
Back Mirror

Kuriyama

Located in Schaumburg, Illinois, Kuriyama of America has been eminently successful in developing and marketing a complete line of thermoplastic hose and accessories. Their expansive product line consist of thermoplastic, rubber and metal hose products, along with accessories including couplings and fittings.
