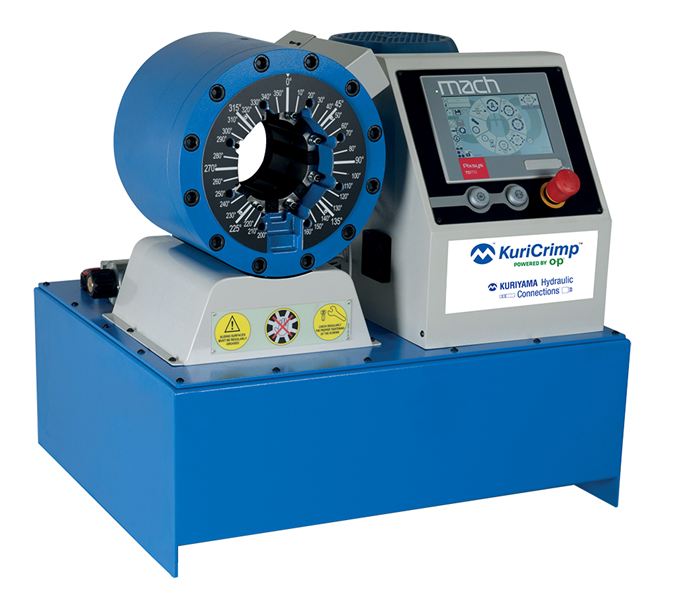

KC3-H83-230/1 KuriCrimp™ by Kuriyama | KC3-H83 Series | Standard Volume Crimper | 5.0 HP (230 V) 1 PH Motor | 150 Ton Crimping Force | Includes: Electric Foot Pedal, Crimp Calculator, Die Segment Change Tool

KC3-H83-230/1 KuriCrimp™ by Kuriyama | KC3-H83 Series | Standard Volume Crimper | 5.0 HP (230 V) 1 PH Motor | 150 Ton Crimping Force | Includes: Electric Foot Pedal, Crimp Calculator, Die Segment Change Tool

Sale price$19,637.05

Kuriyama of America Inc.
KuriCrimp™ | KC3-H83 Series | Standard Volume Crimper

With a new intuitive MACH interface including USB crimp library support and additional improvements all-around, this crimper greatly increases crimping efficiency.
Buy More, Save More!
Quantity Price Each
3–5 $18,458.83
6+ $17,673.35
Discounts applied in cart/checkout.

Product Data:

Brand:
  • KuriCrimp
Series:
  • KC3-H83 Series
Hose Capacity (in):
  • 1 - 2 Wire: 1-1/2
  • 4 SP / 6 SP: 1-1/4 / 1
  • 90° Fittings: 1-1/4
  • Industrial: 1-1/2
Crimping Force (ton):
  • 150
Opening Diameter:
  • Max. Without Dies (mm / in): 111 / 4.37
  • Max. With Dies (mm / in): 96 / 3.78
  • By Die Size (mm): Die Size + 42 / 1.65
Crimper Size:
  • L x W x H (in): 27.2 x 24.3 x 29.9
  • Weight (lbs): 485
Control Mechanism:
  • Full-color, touch-screen display
  • Stores up to 1000 crimp specifications
  • Built-in crimp diameter calculator
  • Adjustable reopen diameter
  • USB port option for data transfer
  • Industrial hose crimp calculator
Hydraulic Fluid:
  • Type ISO 46
  • Amount 70L = 18.50 Gal.
  Part Number Description
KC3-H83-230/1 5.0 HP (230 V) 1 PH Motor
150 Ton Crimping Force
Includes: Electric Foot Pedal, Crimp Calculator, Die Segment Change Tool
KC3-H83-230/3 5.0 HP (230 V) 3 PH Motor
150 Ton Crimping Force
Includes: Electric Foot Pedal, Crimp Calculator, Die Segment Change Tool
Included Accessories
PEDAL-ES
Electric Foot Pedal		 Crimp Calculator Die Segment Change Tool
Dies | H69 Series
Die Number Crimp Range(mm) Closed Diameter(mm) Length(mm) Weight(lbs/ea)
KCDH69-6 6.0 - 8.0mm 6mm 60mm 4.0 lbs
KCDH69-8 8.0 - 10.0mm 8mm 60mm 4.0 lbs
KCDH69-10 10.0 - 12.0mm 10mm 60mm 4.0 lbs
KCDH69-12 12.0 - 14.0mm 12mm 60mm 4.0 lbs
KCDH69-14 14.0 - 16.0mm 14mm 60mm 4.0 lbs
KCDH69-16 16.0 - 19.0mm 16mm 60mm 4.0 lbs
KCDH69-19 19.0 - 22.0mm 19mm 60mm 4.0 lbs
KCDH69-22 22.0 - 25.0mm 22mm 60mm 4.0 lbs
KCDH69-25 25.0 - 29.0mm 25mm 60mm 4.0 lbs
KCDH69-29 29.0 - 34.0mm 29mm 70mm 4.0 lbs
KCDH69-34 34.0 - 38.0mm 34mm 70mm 4.0 lbs
KCDH69-38 38.0 - 42.0mm 38mm 85mm 4.0 lbs
KCDH69-42 42.0 - 46.0mm 42mm 85mm 4.0 lbs
KCDH69-46 46.0 - 50.0mm 46mm 85mm 4.0 lbs
KCDH69-50 50.0 - 54.0mm 50mm 85mm 4.0 lbs
KCDH69-54 54.0 - 58.0mm 54mm 75mm 4.0 lbs
Optional Accessories:
Back Limit Switch KCQCT-H69
Quick Change Die Tool		 KCPQCT-H69-V2.0
Patented Quick Change Die Tool		 DIEBASE-H69
Die Holder Base (12 pc.)		 DIERACK-H69
Die Rack (12 pc.)

Kuriyama

Located in Schaumburg, Illinois, Kuriyama of America has been eminently successful in developing and marketing a complete line of thermoplastic hose and accessories. Their expansive product line consist of thermoplastic, rubber and metal hose products, along with accessories including couplings and fittings.
