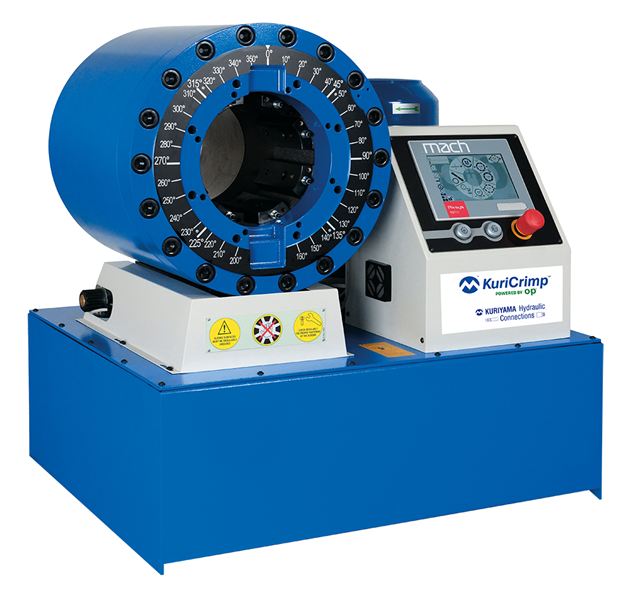

KC3-H170-230/3 KuriCrimp™ by Kuriyama | KC3-H170 Series | Standard Volume Crimper | 7 HP (230 V) 3 PH Motor | 308 Ton Crimping Force | Includes: Back Limit Switch & Crimp Calculator

KC3-H170-230/3 KuriCrimp™ by Kuriyama | KC3-H170 Series | Standard Volume Crimper | 7 HP (230 V) 3 PH Motor | 308 Ton Crimping Force | Includes: Back Limit Switch & Crimp Calculator

Sale price$32,151.94

Kuriyama of America Inc.
KuriCrimp™ | KC3-H170 Series | Standard Volume Crimper

The widest opening of all the Standard Volume Crimpers, makes it ideal for industrial hose up to 4".

Makes an excellent hydraulic hose crimper as well, handling up to 2" wire braid and 4 SP hose, along with Kuriyama 6 SP hoses up to 5000 PSI using F Series, 1-piece fittings.
Buy More, Save More!
Quantity Price Each
3–5 $30,222.82
6+ $28,936.75
Discounts applied in cart/checkout.

Product Data:

Brand:
  • KuriCrimp
Series:
  • KC3-H170 Series
Hose Capacity (in):
  • 1 - 2 Wire: 2
  • 4 SP / 6 SP: 2/2* (*2" limited to 5000 PSI hose using 1-pc fittings)
  • 90° Fittings: 2
  • Industrial: 4
Crimping Force (ton):
  • 308
Opening Diameter:
  • Max. Without Dies (mm / in): 219 / 8.62
  • Max. With Dies (mm / in): 192 / 7.56
  • By Die Size (mm): Die Size + 61
Crimper Size:
  • L x W x H (in): 32.3 x 25.9 x 33.0
  • Weight (lbs): 1,102
Control Mechanism:
  • Full-color, touch-screen display
  • Stores up to 200 crimp specifications
  • Built-in crimp diameter calculator
  • Adjustable reopen diameter
  • USB port option for data transfer
  Part Number Description
KC3-H170-230/3 7 HP (230 V) 3 PH Motor
308 Ton Crimping Force
Includes: Back Limit Switch & Crimp Calculator
Included Accessories
Back Limit Switch Crimp Calculator
Dies | H144 Series
Die Number Crimp Range(mm) Closed Diameter(mm) Length(mm) Weight(lbs/ea)
KCDH144-103 103.0 - 106.0mm 103mm 130mm 12.5 lbs
KCDH144-106 106.0 - 111.0mm 106mm 130mm 12.5 lbs
KCDH144-111 111.0 - 116.0mm 111mm 130mm 12.5 lbs
KCDH144-116 116.0 - 121.0mm 116mm 130mm 12.5 lbs
KCDH144-121 121.0 - 126.0mm 121mm 130mm 12.5 lbs
KCDH144-126 126.0 - 131.0mm 126mm 130mm 12.5 lbs
KCDH144-131 131.0 - 144.0mm 131mm 130mm 12.5 lbs

*Crimp range up to 170 mm for KC3-H170 crimper, with custom dies available up to 138 mm.

Dies | H119 Series
Die Number Crimp Range(mm) Closed Diameter(mm) Length(mm) Weight(lbs/ea)
KCDH119-6 6.0 - 8.0mm 6mm 60mm 11.7 lbs
KCDH119-8 8.0 - 10.0mm 8mm 60mm 11.7 lbs
KCDH119-10 10.0 - 12.0mm 10mm 60mm 11.7 lbs
KCDH119-12 12.0 - 14.0mm 12mm 60mm 11.7 lbs
KCDH119-14 14.0 - 16.0mm 14mm 60mm 11.7 lbs
KCDH119-16 16.0 - 19.0mm 16mm 60mm 11.7 lbs
KCDH119-19 19.0 - 22.0mm 19mm 60mm 11.7 lbs
KCDH119-22 22.0 - 25.0mm 22mm 60mm 12.2 lbs
KCDH119-25 25.0 - 29.0mm 25mm 60mm 12.0 lbs
KCDH119-29 29.0 - 34.0mm 29mm 70mm 12.0 lbs
KCDH119-34 34.0 - 38.0mm 34mm 70mm 12.0 lbs
KCDH119-38 38.0 - 42.0mm 38mm 85mm 12.0 lbs
KCDH119-42 42.0 - 46.0mm 42mm 85mm 15.5 lbs
KCDH119-46 46.0 - 50.0 46mm 95mm 16.5 lbs
KCDH119-50 50.0 - 54.0mm 50mm 95mm 15.5 lbs
KCDH119-54X110 54.0 - 58.0mm 54mm 110mm 15.5 lbs
KCDH119-58 58.0 - 63.0mm 58mm 95mm 14.5 lbs
KCDH119-60X110 60.0 - 63.0mm 58mm 110mm 14.5 lbs
KCDH119-63X120 63.0 - 69.0mm 63mm 120mm 14.5 lbs
KCDH119-69 69.0 - 73.0mm 69mm 100mm 13.5 lbs
KCDH119-73X120 73.0 - 77.0mm 73mm 120mm 12.5 lbs
KCDH119-77 77.0 - 86.0mm 77mm 120mm 12.5 lbs
KCDH119-86 86.0 - 90.0mm 86mm 120mm 12.5 lbs
KCDH119-90 90.0 - 96.0mm 90mm 150mm 12.5 lbs
KCDH119-96 96.0 - 103.0mm 96mm 120mm 12.5 lbs
Optional Accessories:
KCQCT-H119
Quick Change Die Tool		 DIEBASE-H119
Die Holder Base (18 pc.)		 DIERACK-H119
Die Rack (8 pc.)
PEDAL-ES
Electric Foot Pedal		 ES3 Upgrades
(Contact Customer Service)		 CALKIT-H144/170
Cleaning and Lubrication Kit
