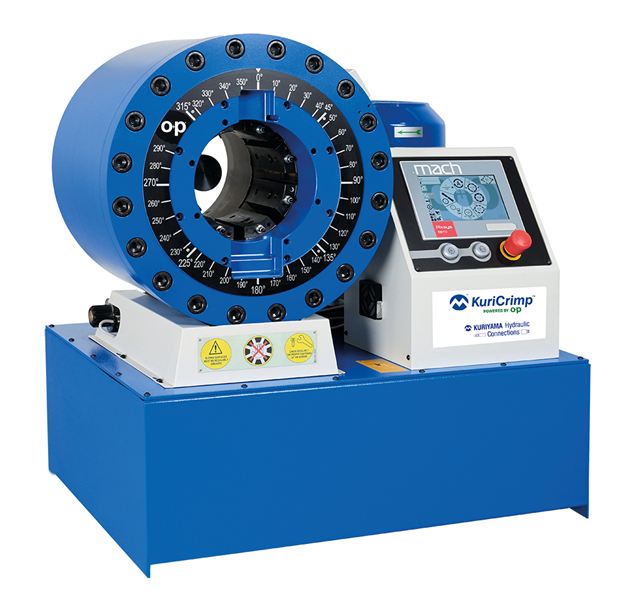

KC3-H144-230/3 KuriCrimp™ by Kuriyama | KC3-H144 Series | Standard Volume Crimper | 7.5 HP (230 V) 3 PH Motor | 440 Ton Crimping Force | Includes: Electric Foot Pedal, Crimp Calculator, Die Segment Change Tool

KC3-H144-230/3 KuriCrimp™ by Kuriyama | KC3-H144 Series | Standard Volume Crimper | 7.5 HP (230 V) 3 PH Motor | 440 Ton Crimping Force | Includes: Electric Foot Pedal, Crimp Calculator, Die Segment Change Tool

Sale price$30,570.36

Kuriyama of America Inc.
KuriCrimp™ | KC3-H144 Series | Standard Volume Crimper

The KC3-H144 is a powerful crossover crimper that handles all types and sizes of hydraulic hose and industrial hose up to 4".

The new intuitive MACH interface improves efficiency and reduces crimp cycle times. Reduction dies included.
Buy More, Save More!
Quantity Price Each
3–5 $28,736.14
6+ $27,513.32
Discounts applied in cart/checkout.

Product Data:

Brand:
  • KuriCrimp
Series:
  • KC3-H144 Series
Hose Capacity (in):
  • 1 - 2 Wire: 2-1/2
  • 4 SP / 6 SP: 2-1/2
  • 90° Fittings: 2
  • Industrial: 4
Crimping Force (ton):
  • 440
Opening Diameter:
  • Max. Without Dies (mm / in): 203 / 7.99
  • Max. With Dies (mm / in): 176 / 6.93
  • By Die Size (mm): Die Size + 45 / 1.77
Crimper Size:
  • L x W x H (in): 33.0 x 30.3 x 33.6
  • Weight (lbs): 1,213
Control Mechanism:
  • Full-color, touch-screen display.
  • Stores up to 1000 crimp specifications.
  • Built-in crimp diameter calculator.
  • Adjustable reopen diameter.
  • USB port option for data transfer.
  • Industrial hose crimp calculator.
Hydraulic Fluid:
  • Type: ISO 46
  • Amount: 110L = 29.06 Gal.
  Part Number Description
KC3-H144-230/3 7.5 HP (230 V) 3 PH Motor
440 Ton Crimping Force
Includes: Electric Foot Pedal, Crimp Calculator, Die Segment Change Tool
Included Accessories
PEDAL-ES
Electric Foot Pedal		 Crimp Calculator Die Segment Change Tool
Dies | H119 Series
Die Number Crimp Range(mm) Closed Diameter(mm) Length(mm) Weight(lbs/ea)
KCDH119-6 6.0 - 8.0mm 6mm 60mm 11.7 lbs
KCDH119-8 8.0 - 10.0mm 8mm 60mm 11.7 lbs
KCDH119-10 10.0 - 12.0mm 10mm 60mm 11.7 lbs
KCDH119-12 12.0 - 14.0mm 12mm 60mm 11.7 lbs
KCDH119-14 14.0 - 16.0mm 14mm 60mm 11.7 lbs
KCDH119-16 16.0 - 19.0mm 16mm 60mm 11.7 lbs
KCDH119-19 19.0 - 22.0mm 19mm 60mm 11.7 lbs
KCDH119-22 22.0 - 25.0mm 22mm 60mm 12.2 lbs
KCDH119-25 25.0 - 29.0mm 25mm 60mm 12.0 lbs
KCDH119-29 29.0 - 34.0mm 29mm 70mm 12.0 lbs
KCDH119-31 31.0 - 36.0mm 31mm 70mm 12.0 lbs
KCDH119-34 34.0 - 38.0mm 34mm 70mm 12.0 lbs
KCDH119-38 38.0 - 42.0mm 38mm 85mm 12.0 lbs
KCDH119-42 42.0 - 46.0mm 42mm 85mm 15.5 lbs
KCDH119-46 46.0 - 50.0 46mm 95mm 16.5 lbs
KCDH119-50 50.0 - 54.0mm 50mm 95mm 15.5 lbs
KCDH119-54 54.0 - 58.0mm 54mm 95mm 15.5 lbs
KCDH119-54X110 54.0 - 58.0mm 54mm 110mm 15.5 lbs
KCDH119-58 58.0 - 63.0mm 58mm 95mm 14.5 lbs
KCDH119-60X110 60.0 - 63.0mm 58mm 110mm 14.5 lbs
KCDH119-63 63.0 - 69.0mm 63mm 100mm 14.5 lbs
KCDH119-63X120 63.0 - 69.0mm 63mm 120mm 14.5 lbs
KCDH119-69 69.0 - 73.0mm 69mm 100mm 13.5 lbs
KCDH119-73X120 73.0 - 77.0mm 73mm 120mm 12.5 lbs
KCDH119-77 77.0 - 86.0mm 77mm 120mm 12.5 lbs
KCDH119-86 86.0 - 90.0mm 86mm 120mm 12.5 lbs
KCDH119-90 90.0 - 96.0mm 90mm 150mm 12.5 lbs
KCDH119-96 96.0 - 103.0mm 96mm 120mm 12.5 lbs
Optional Accessories:
KCQCT-H119
Quick Change Die Tool		 KCPQCT-H135
Patented Quick Change Die Tool		 DIEBASE-H119
Die Holder Base (18 pc.)		 DIERACK-H119
Die Rack (8 pc.)		 Back Limit Switch
