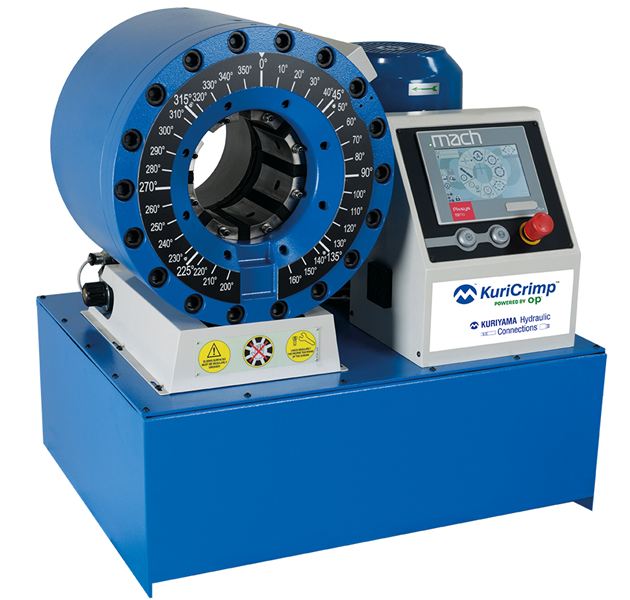

KC3-H135-230/3 KuriCrimp™ by Kuriyama | KC3-H135 Series | Standard Volume Crimper | 7.5 HP (230 V) 3 PH Motor | 345 Ton Crimping Force | Includes: Back Limit Switch & Crimp Calculator

KC3-H135-230/3 KuriCrimp™ by Kuriyama | KC3-H135 Series | Standard Volume Crimper | 7.5 HP (230 V) 3 PH Motor | 345 Ton Crimping Force | Includes: Back Limit Switch & Crimp Calculator

Sale price$25,016.84

Kuriyama of America Inc.
KuriCrimp™ | KC3-H135 Series | Standard Volume Crimper

The production oriented KC3-H135 is a powerful shop crimper that handles all types and sizes of hydraulic hose up to 2" and industrial hose up to 3".

Its back limit switch and ES3 computerized controller reduce crimp cycle times.
Buy More, Save More!
Quantity Price Each
3–5 $23,515.83
6+ $22,515.16
Discounts applied in cart/checkout.

Product Data:

Brand:
  • KuriCrimp
Series:
  • KC3-H135 Series
Hose Capacity (in):
  • 1 - 2 Wire: 2
  • 4 SP / 6 SP: 2
  • 90° Fittings: 2
  • Industrial: 3
Crimping Force (ton):
  • 345
Opening Diameter:
  • Max. Without Dies (mm / in): 162 / 6.38
  • Max. With Dies (mm / in): 108 / 4.25
  • By Die Size (mm): Die Size + 43
Crimper Size:
  • L x W x H (in): 32.3 x 29.5 x 32.3
  • Weight (lbs): 1,047
Control Mechanism:
  • Full-color, touch-screen display.
  • Stores up to 200 crimp specifications.
  • Built-in crimp diameter calculator.
  • Adjustable reopen diameter.
  • USB port option for data transfer.
  Part Number Description
KC3-H135-230/3 7.5 HP (230 V) 3 PH Motor
345 Ton Crimping Force
Includes: Back Limit Switch & Crimp Calculator
Included Accessories
Back Limit Switch Crimp Calculator
Dies | H119 Series
Die Number Crimp Range(mm) Closed Diameter(mm) Length(mm) Weight(lbs/ea)
KCDH119-6 6.0 - 8.0mm 6mm 60mm 11.7 lbs
KCDH119-8 8.0 - 10.0mm 8mm 60mm 11.7 lbs
KCDH119-10 10.0 - 12.0mm 10mm 60mm 11.7 lbs
KCDH119-12 12.0 - 14.0mm 12mm 60mm 11.7 lbs
KCDH119-14 14.0 - 16.0mm 14mm 60mm 11.7 lbs
KCDH119-16 16.0 - 19.0mm 16mm 60mm 11.7 lbs
KCDH119-19 19.0 - 22.0mm 19mm 60mm 11.7 lbs
KCDH119-22 22.0 - 25.0mm 22mm 60mm 12.2 lbs
KCDH119-25 25.0 - 29.0mm 25mm 60mm 12.0 lbs
KCDH119-29 29.0 - 34.0mm 29mm 70mm 12.0 lbs
KCDH119-34 34.0 - 38.0mm 34mm 70mm 12.0 lbs
KCDH119-38 38.0 - 42.0mm 38mm 85mm 12.0 lbs
KCDH119-42 42.0 - 46.0mm 42mm 85mm 15.5 lbs
KCDH119-46 46.0 - 50.0 46mm 95mm 16.5 lbs
KCDH119-50 50.0 - 54.0mm 50mm 95mm 15.5 lbs
KCDH119-54X110 54.0 - 58.0mm 54mm 110mm 15.5 lbs
KCDH119-58 58.0 - 63.0mm 58mm 95mm 14.5 lbs
KCDH119-60X110 60.0 - 63.0mm 58mm 110mm 14.5 lbs
KCDH119-63X120 63.0 - 69.0mm 63mm 120mm 14.5 lbs
KCDH119-69 69.0 - 73.0mm 69mm 100mm 13.5 lbs
KCDH119-73X120 73.0 - 77.0mm 73mm 120mm 12.5 lbs
KCDH119-77 77.0 - 86.0mm 77mm 120mm 12.5 lbs
KCDH119-86 86.0 - 90.0mm 86mm 120mm 12.5 lbs
KCDH119-90 90.0 - 96.0mm 90mm 150mm 12.5 lbs
KCDH119-96 96.0 - 103.0mm 96mm 120mm 12.5 lbs
Optional Accessories:
KCQCT-H119
Quick Change Die Tool		 DIEBASE-H119
Die Holder Base (18 pc.)		 DIERACK-H119
Die Rack (8 pc.)
PEDAL-ES
Electric Foot Pedal		 ES3 Upgrades
(Contact Customer Service)		 CALKIT-H144/170
Cleaning and Lubrication Kit

Kuriyama

Located in Schaumburg, Illinois, Kuriyama of America has been eminently successful in developing and marketing a complete line of thermoplastic hose and accessories. Their expansive product line consist of thermoplastic, rubber and metal hose products, along with accessories including couplings and fittings.
