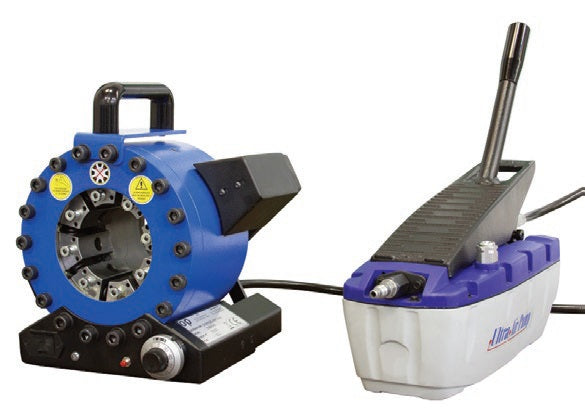

KC1-H64PI KuriCrimp™ by Kuriyama | KC1-H64PI Series | Service Crimper | Air Powered | 132 Ton Crimping Force | Includes: Die Segment Change Tool, Air Pump, & Carry Handle

KC1-H64PI KuriCrimp™ by Kuriyama | KC1-H64PI Series | Service Crimper | Air Powered | 132 Ton Crimping Force | Includes: Die Segment Change Tool, Air Pump, & Carry Handle

Sale price$7,284.43

Kuriyama of America Inc.
KuriCrimp™ | KC1-H64PI Series | Service Crimper

Portable and powerful. Its built-in carrying handle and 95 lbs. weight makes it excellent for switching between on-site and in-shop use.

Crimps up to 1-1/2" two wire, and 1-1/4" 4 SP hydraulic hoses.
Buy More, Save More!
Quantity Price Each
3–5 $6,847.36
6+ $6,555.99
Discounts applied in cart/checkout.

Product Data:

Brand:
  • KuriCrimp
Series:
  • KC1-H64PI Series

* 1-1/4" up to 4,000 PSI. 1" up to 5,000 PSI.

Hose Capacity (in):
  • 1 - 2 Wire: 1-1/2"
  • 4 SP / 6 SP: 1-1/4* / 1
  • 90º Fittings: NA
  • Industrial: NA
Crimping Force (ton):
  • 132
Opening Diameter:
  • Max. With Dies (mm / in): 69 / 2.72
  • By Die Size (mm / in): Die Size + 15 / 0.59
Crimper Size:
  • L x W x H (in): 12.0 x 10.1 x 12.2
  • Weight (lbs): 95
Control Mechanism:
  • Dial micrometer, with electric limit switch indicating when the crimp diameter is reached.
  Part Number Description
KC1-H64PI Air Powered
132 Ton Crimping Force
Included: Die Segment Change Tool, Air Pump, & Carry Handle
Included Accessories
Die Segment Change Tool Air Pump Carry Handle
Dies | H64 Series
Die Number Crimp Range(mm) Closed Diameter(mm) Length(mm) Weight(lbs/ea)
KCDH64-6 6.0 - 8.0mm 6mm 46mm 4.0 lbs
KCDH64-8 8.0 - 10.0mm 8mm 46mm 4.0 lbs
KCDH64-10 10.0 - 12.0mm 10mm 46mm 4.0 lbs
KCDH64-12 12.0 - 14.0mm 12mm 46mm 4.0 lbs
KCDH64-14 14.0 - 16.0mm 14mm 46mm 4.0 lbs
KCDH64-16 16.0 - 19.0mm 16mm 46mm 4.0 lbs
KCDH64-19 19.0 - 22.0mm 19mm 55mm 4.0 lbs
KCDH64-22 22.0 - 25.0mm 22mm 55mm 4.0 lbs
KCDH64-25 25.0 - 29.0mm 25mm 55mm 4.0 lbs
KCDH64-29 29.0 - 34.0mm 29mm 60mm 4.0 lbs
KCDH64-34 34.0 - 38.0mm 34mm 60mm 4.0 lbs
KCDH64-38 38.0 - 42.0mm 38mm 65mm 4.0 lbs
KCDH64-42 42.0 - 46.0mm 42mm 65mm 4.0 lbs
KCDH64-46 46.0 - 50.0mm 46mm 65mm 4.0 lbs
KCDH64-50 50.0 - 54.0mm 50mm 65mm 4.0 lbs
KCDH64-54 54.0 - 58.0mm 54mm 65mm 4.0 lbs
