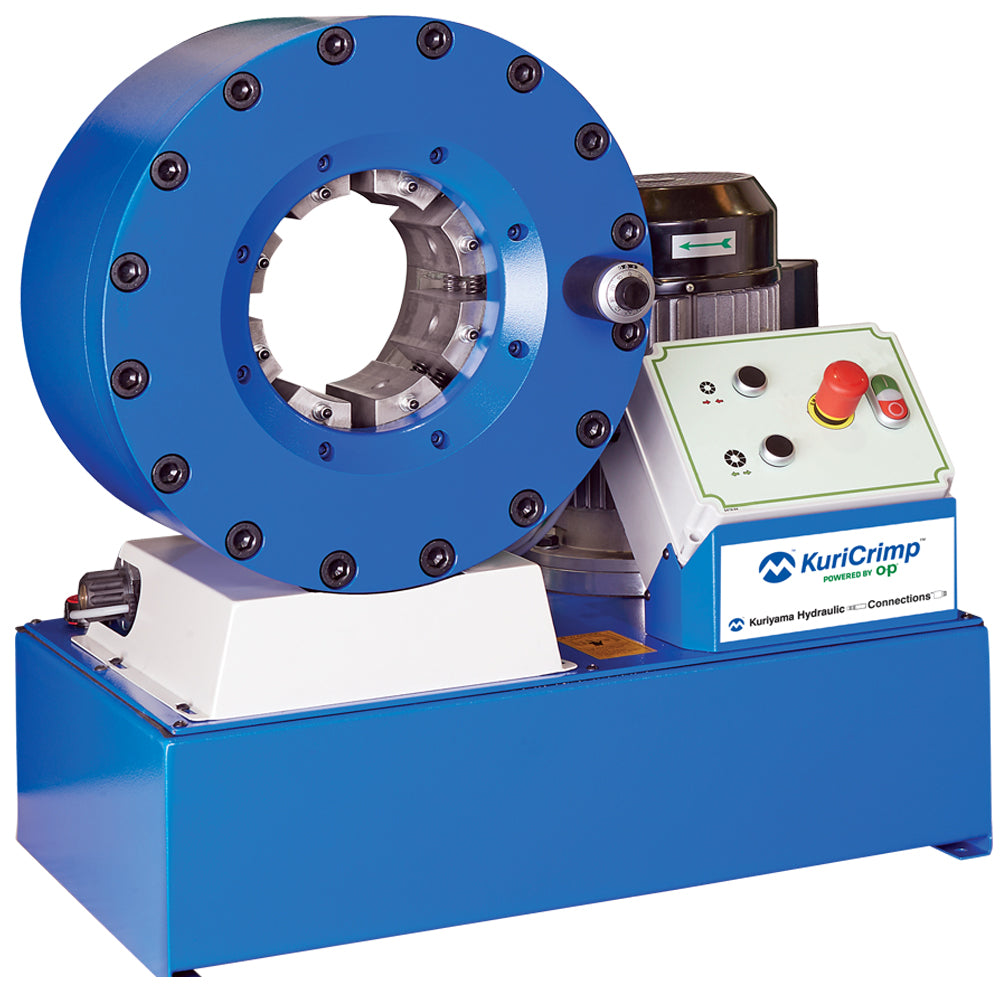

KC1-H135-230/3 KuriCrimp™ by Kuriyama | KC1-H135 Series | Standard Volume Crimper | 7.5 HP (230 V) 3 PH Motor | 330 Ton Crimping Force

KC1-H135-230/3 KuriCrimp™ by Kuriyama | KC1-H135 Series | Standard Volume Crimper | 7.5 HP (230 V) 3 PH Motor | 330 Ton Crimping Force

Sale price$18,912.25

Kuriyama of America Inc.
KuriCrimp™ | KC1-H135 Series | Standard Volume Crimper

A powerful, no frills crimper that gets the job done.

Handles all styles of hydraulic hose up to 2", as well as industrial hose up to 3".
Buy More, Save More!
Quantity Price Each
3–5 $17,777.52
6+ $17,021.03
Discounts applied in cart/checkout.

Product Data:

Brand:
  • KuriCrimp
Series:
  • KC1-H135 Series
Hose Capacity (in):
  • 1 - 2 Wire: 2
  • 4 SP / 6 SP: 2
  • 90° Fittings: 2
  • Industrial: 3
Crimping Force (ton):
  • 330
Opening Diameter:
  • Max. Without Dies (mm / in): 162 / 6.38
  • Max. With Dies (mm / in): 139 / 5.47
  • By Die Size (mm): Die Size + 43
Crimper Size:
  • L x W x H (in): 30.7 x 24.8 x 28.1
  • Weight (lbs): 704
Control Mechanism:
  • Dial micrometer with locking switch.
  • Electromechanical controls with power, open/close and emergency off buttons.
  Part Number Description
KC1-H135-230/1 5.5 HP (230 V) 1 PH Motor
330 Ton Crimping Force
KC1-H135-230/3 7.5 HP (230 V) 3 PH Motor
330 Ton Crimping Force
Dies | H119 Series
Die Number Crimp Range(mm) Closed Diameter(mm) Length(mm) Weight(lbs/ea)
KCDH119-6 6.0 - 8.0mm 6mm 60mm 11.7 lbs
KCDH119-8 8.0 - 10.0mm 8mm 60mm 11.7 lbs
KCDH119-10 10.0 - 12.0mm 10mm 60mm 11.7 lbs
KCDH119-12 12.0 - 14.0mm 12mm 60mm 11.7 lbs
KCDH119-14 14.0 - 16.0mm 14mm 60mm 11.7 lbs
KCDH119-16 16.0 - 19.0mm 16mm 60mm 11.7 lbs
KCDH119-19 19.0 - 22.0mm 19mm 60mm 11.7 lbs
KCDH119-22 22.0 - 25.0mm 22mm 60mm 12.2 lbs
KCDH119-25 25.0 - 29.0mm 25mm 60mm 12.0 lbs
KCDH119-29 29.0 - 34.0mm 29mm 70mm 12.0 lbs
KCDH119-34 34.0 - 38.0mm 34mm 70mm 12.0 lbs
KCDH119-38 38.0 - 42.0mm 38mm 85mm 12.0 lbs
KCDH119-42 42.0 - 46.0mm 42mm 85mm 15.5 lbs
KCDH119-46 46.0 - 50.0 46mm 95mm 16.5 lbs
KCDH119-50 50.0 - 54.0mm 50mm 95mm 15.5 lbs
KCDH119-54X110 54.0 - 58.0mm 54mm 110mm 15.5 lbs
KCDH119-58 58.0 - 63.0mm 58mm 95mm 14.5 lbs
KCDH119-60X110 60.0 - 63.0mm 58mm 110mm 14.5 lbs
KCDH119-63X120 63.0 - 69.0mm 63mm 120mm 14.5 lbs
KCDH119-69 69.0 - 73.0mm 69mm 100mm 13.5 lbs
KCDH119-73X120 73.0 - 77.0mm 73mm 120mm 12.5 lbs
KCDH119-77 77.0 - 86.0mm 77mm 120mm 12.5 lbs
KCDH119-86 86.0 - 90.0mm 86mm 120mm 12.5 lbs
KCDH119-90 90.0 - 96.0mm 90mm 150mm 12.5 lbs
KCDH119-96 96.0 - 103.0mm 96mm 120mm 12.5 lbs
Optional Accessories:
KCQCT-H119
Quick Change Die Tool		 DIEBASE-H119
Die Holder Base (18 pc.)		 DIERACK-H119
Die Rack (8 pc.)
PEDAL-KC1
Electric Double Foot Pedal		 KCPQCT-H135
Patented Quick Change Die Tool for H135 Standard Volume Crimpers		 MIRROR-H135/170
Back Mirror for H135 Standard Volume Crimpers

Kuriyama

Located in Schaumburg, Illinois, Kuriyama of America has been eminently successful in developing and marketing a complete line of thermoplastic hose and accessories. Their expansive product line consist of thermoplastic, rubber and metal hose products, along with accessories including couplings and fittings.
