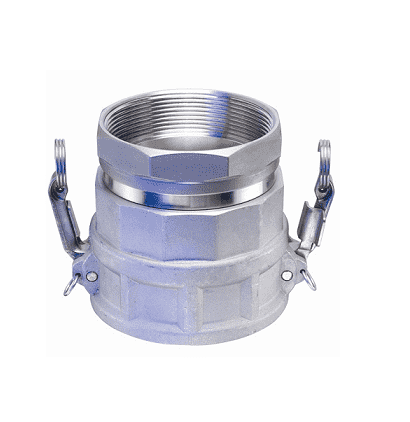

KAS-C501 by Kuriyama | Quick-Acting Swivel Coupling | Type D | 5" Aluminum Female Coupler x 5" 304 Stainless Steel Female NPT Swivel

KAS-C501 by Kuriyama | Quick-Acting Swivel Coupling | Type D | 5" Aluminum Female Coupler x 5" 304 Stainless Steel Female NPT Swivel

Sale price$403.23

Kuriyama Couplings™ - Quick-Acting Swivel Couplings - Aluminum Female Coupler x 304 Stainless Steel Female NPT Swivel

Buy More, Save More!
Quantity Price Each
5–14 $379.04
15–29 $342.75
30+ $302.42
Discounts applied in cart/checkout.

Product Data:

Shape:

Straight

Cam & Groove Type:

Type D

Ends Configuration:
  • 5in Female Cam & Groove
  • 5in Female NPT
Applications:
  • Agriculture, Chemicals/Petroleum, Construction, Fracking, Irrigation, Material Handling
  • For use with Kuriyama Hoses
Features:
  • All sizes except 1/2", 5" and 8" comply with Mil-Spec A-A-59326 for interchangeability.
  • 5" Size complies with ASTM specs for interchangeability.
  • 1/2" x 1/2" are not specified under Mil Specs.
  • All 8" and 10" female couplers supplied with 4 locking handles, safety clips, pull rings and chains.
  • Aluminum alloy is specially designed for high tensile strength, lightness and rigidity.
  • Locking feature using safety clips to prevent disconnection during use on all sizes except 1/2".
  • Hose shanks specially designed for easy assembly with Tigerflex type hoses.
  • Aluminum couplings supplied with brass handles which results in less wear on connecting parts
Materials:
  • ASTM B85 Grade 383 aluminum alloy.
  • Forged brass handles - aluminum items.
  • Type 304 stainless steel handles - ALSH items.
  • Zinc-plated carbon steel handle pins.
  • Zinc-plated carbon steel pull rings.
  • Zinc-plated carbon steel safety clips
  • Buna-N Gaskets
Part Number Female Coupler Female NPT Swivel Weight (Lbs.)
KAS-C401 4" 4" 5.2 lbs
KAS-C501 5" 5" 6.53 lbs
KAS-C601 6" 6" 10.49 lbs

Kuriyama

Located in Schaumburg, Illinois, Kuriyama of America has been eminently successful in developing and marketing a complete line of thermoplastic hose and accessories. Their expansive product line consist of thermoplastic, rubber and metal hose products, along with accessories including couplings and fittings.
