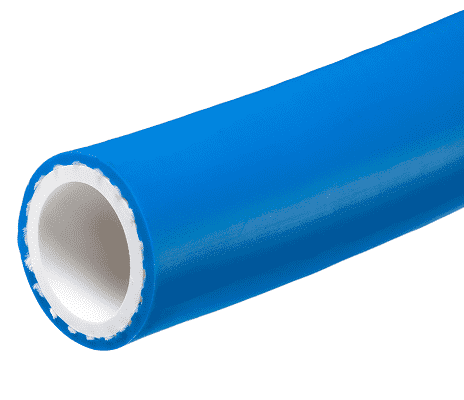

K6136-KA12X500 Kuri-Tec by Kuriyama | K6136 Series | High Purity Street to Home Potable Water Hose | 3/4" ID | 1.125" OD | 500ft Length

K6136-KA12X500 Kuri-Tec by Kuriyama | K6136 Series | High Purity Street to Home Potable Water Hose | 3/4" ID | 1.125" OD | 500ft Length

Sale price$1,108.42

Kuriyama Kuri Tec® Series K6136 High Purity Street to Home Potable Water Hose A quality potable water hose specifically designed for temporary water supply and bypass applications.

Package Quantity: 500 FT

Buy More, Save More!
Quantity Price Each
4–7 $1,041.91
8–14 $997.58
15+ $886.74
Discounts applied in cart/checkout.

Product Data:

Brand:
  • Kuri Tec
Series:
  • K6136 Series
Color(s):
  • Blue

SPECIFICATIONS

Application: Transfer of potable water, Water purification systems, Temporary surface bypass potable water lines for municipal construction sites, Water sampling. SAE Rating: N/A
Other Ratings: N/A Tube: Pure white PVC compound, formulated in compliance with applicable FDA(03) and RoHS(15) requirements. Meets NSF(11) criteria.
Reinforcement: High tensile strength yarn, with longitudinal yarns to prevent elongation under pressure. Cover: Blue high quality PVC compound, uniquely blended to provide excellent abrasion- and weatherresistance. Blue color signifies pure water line.
Temperature Range: -10 deg. F (-23 deg. C) to +150 deg. F (+65 deg. C) Crimp Fittings: N/A
Reusable Fittings: N/A Specifications FDA(03), NSF(11), RoHS(15)
Other Features:
  • KC046-W high purity NSF-61(11) certified tube material diminishes water quality concerns regarding surfaces which are contacted by potable water.
  • KC046-W inner tube is less porous than the tube in commonly-used conventional rubber hoses, and is easier to flush and keep clean.
  • Silicone-free.
  • White inner tube and Blue cover reduce tendency for algae growth in warm, sunny environments.
  • Extremely light weight - 22 to 25% lighter than conventional rubber hose, helps to reduce worker fatigue.
  • Hassle-free and easier to use, requires less installation time than rigid pipe.
  • Strong and durable, ideal for construction site environments.
  • Heavy duty construction limits kinking in the hot summer sun.
  • Good abrasion resistance.
  • Does not leave a bad taste or odor in the water, unlike conventional rubber hoses.

Part Number Nominal ID Nominal OD Working Pressure Standard Lengths Approx Weight per Pkg
(in.) (mm) (in.) (mm) @ 70 deg. F (20 deg. C) (PSI) @ 122 deg. F (50 deg. C) (PSI) Reel
K6136-KA12X500 3/4" 19.1mm 1.125" 28.6mm 250 PSI 110 PSI 500 ft. 168 lbs.
K6136-KA32X100 2" 50.8mm 2.48" 63.0mm 110 PSI 45 PSI 100 ft. 96 lbs.

Note: Working Pressure decreases as temperature increases. Pressure ratings can only be obtained with proper coupling procedures. Use of compression fittings with Kuri Tec® yarn-reinforced hose is not recommended. Hose claims involving use of these fittings will be disallowed.

Kuriyama

Located in Schaumburg, Illinois, Kuriyama of America has been eminently successful in developing and marketing a complete line of thermoplastic hose and accessories. Their expansive product line consist of thermoplastic, rubber and metal hose products, along with accessories including couplings and fittings.
