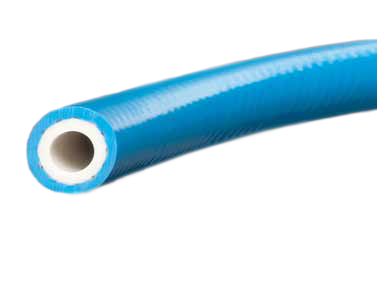

K1166-04X2.5K by Kuriyama | "Pneumo" Low Pressure Air Hose | 1/4" ID | 0.500" OD | 300PSI | 2500ft Length

K1166-04X2.5K by Kuriyama | "Pneumo" Low Pressure Air Hose | 1/4" ID | 0.500" OD | 300PSI | 2500ft Length

Sale price$1,673.83

Kuriyama Oil & Gas Products - "Pneumo" Low Pressure Air Hose

The Pneumo fathometer system or "Pneumo" is usually contained in the commercial diver's air manifold box. It uses a small volume of low pressure air to measure the diver's depth. Our high-quality PVC compounds enable this hose to perform extremely well as a lowpressure air hose versus standard rubber hoses. Its light weight makes it an ideal hose for Pneumo applications.

Package Quantity: 2500 FT

Buy More, Save More!
Quantity Price Each
4–7 $1,573.40
8–14 $1,506.45
15+ $1,339.06
Discounts applied in cart/checkout.
Application:
  • Diver's Pneumo hose used singly or with umbilicals.
  • General air supply line for pneumatic tools.
 SAE Rating: N/A
Other Ratings: N/A Tube: White general purpose PVC compound.
Reinforcement: Spiralled high tensile synthetic yarn. Cover: Bright blue general purpose PVC compound.
Temperature Range: -10 deg. F (-23 deg. C) to +150 deg. F (+65 deg. C) Crimp Fittings: N/A
Reusable Fittings: N/A Specifications N/A
Other Features:
  • Chemical resistance of PVC.
  • Compatible with brass re-usable fittings.
  • Extremely flexible and durable.
  • Lightweight.
  • Long continuous lengths.
  • Medium/high oil resistance, complies with RMA's Class B Designation.
  • Multiple colors to choose from.
  • Non-marking pin-pricked cover.
  • One-piece reel lengths.
  • Private branding available
  • RoHS compliant
  • Silicone-free core and cover
  • U. V. and weather resistant
  • The K1166 Series "Pneumo" hose can also be used as part of an umbilical hose group.
Part Number Nominal ID Nominal OD Max. Working Pressure* (PSI) Standard Lengths Approx. Weight per Pkg.
(in.) (mm.) (in.) (mm.) @ 70 deg. F (20 deg. C) @ 122 deg. F (50 deg. C) Reel Reel
K1166-04X2.5K 1/4" 6.5mm 0.500" 12.7mm 300 PSI 180 PSI 2500 ft. 255 lbs.

* Note: Working Pressure decreases as temperature increases. Pressure ratings can only be obtained with proper coupling procedures.

Product Data:

Brand:
  • Kuri Tec
Series:
  • K1166 Series
Color(s):
  • Blue

Kuriyama

Located in Schaumburg, Illinois, Kuriyama of America has been eminently successful in developing and marketing a complete line of thermoplastic hose and accessories. Their expansive product line consist of thermoplastic, rubber and metal hose products, along with accessories including couplings and fittings.
