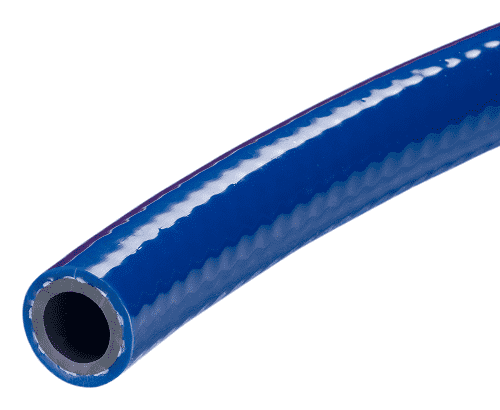

K1156-06X100 Kuri-Tec by Kuriyama | K1156 Series | General Purpose Air & Water Hose | Blue | 3/8" ID | .625" OD | PVC | 100ft Length
Kuriyama

K1156-06X100 Kuri-Tec by Kuriyama | K1156 Series | General Purpose Air & Water Hose | Blue | 3/8" ID | .625" OD | PVC | 100ft Length

Sale price$90.13

Kuriyama Kuri Tec® Series K1154 General Purpose PVC Air & Water Hose - Blue A general purpose PVC air and Water Red Hose for in plant and outdoor applications in temperate climate conditions.

Package Quantity: 100 FT

Product Data:

Brand:
  • Kuri Tec
Series:
  • K1156 Series
Color(s):
  • Blue

SPECIFICATIONS

Application: Transfer of air, water and mild water soluble chemicals, Ideal for in-plant applications that require an economical general purpose hose, Excellent air supply line for pneumatic tools and paint spray systems. SAE Rating: N/A
Other Ratings: N/A Tube: Black PVC compound
Reinforcement: High tensile strength yarn Cover: PVC compound
Temperature Range: +14 deg. F (-10 deg. C) to +150 deg. F (+65 deg. C) Crimp Fittings: N/A
Reusable Fittings: N/A Specifications N/A
Other Features:
  • Economical, flexible and lightweight.
  • Excellent abrasion resistance.
  • U. V. and weather resistant.
  • Non-marking pin-pricked cover.
  • Silicone-free core and cover.
  • Complies with RMA's Class B designation for medium/high oil resistance.
  • One-piece lengths.
Part Number Nominal ID Nominal OD Working Pressure Standard Lengths Approx Weight per Pkg
(in.) (mm) (in.) (mm) @ 70 deg. F (20 deg. C) (PSI) @ 122 deg. F (50 deg. C) (PSI)
K1156-04X100 1/4" 6.4mm .500" 12.7mm 300 PSI 150 PSI 100 ft. Coil 8 lbs.
K1156-04X500 1/4" 6.4mm .500" 12.7mm 300 PSI 150 PSI 500 ft. Reel 44 lbs.
K1156-05X500 5/16" 7.9 mm .625" 15.9mm 300 PSI 150 PSI 500 ft. Reel 68 lbs.
K1156-06X100 3/8" 9.5mm .625" 15.9mm 300 PSI 150 PSI 100 ft. Coil 11 lbs.
K1156-06X500 3/8" 9.5mm .625" 15.9mm 300 PSI 150 PSI 500 ft. Reel 56 lbs.
K1156-08X100 1/2" 12.7mm .750" 19.1mm 300 PSI 150 PSI 100 ft. Coil 14 lbs.
K1156-08X500 1/2" 12.7mm .750" 19.1mm 300 PSI 150 PSI 500 ft. Reel 77 lbs.
K1156-10X100 5/8" 15.9mm .895" 22.6mm 200 PSI 100 PSI 100 ft. Coil 18 lbs.
K1156-10X300 5/8" 15.9mm .895" 22.6mm 200 PSI 100 PSI 300 ft. Reel 60 lbs.
K1156-12X100 3/4" 19.1mm 1.030" 26.2mm 200 PSI 75 PSI 100 ft. Coil 22 lbs.
K1156-12X300 3/4" 19.1mm 1.030" 26.2mm 200 PSI 75 PSI 300 ft. Reel 72 lbs.
K1156-16X100 1" 25.4mm 1.313" 33.3mm 150 PSI 75 PSI 100 ft. Coil 31 lbs.
K1156-16X300 1" 25.4mm 1.313" 33.3mm 150 PSI 75 PSI 300 ft. Reel 105 lbs.
Note: Working Pressure decreases as temperature increases. Pressure ratings can only be obtained with proper coupling procedures.

Kuriyama

Located in Schaumburg, Illinois, Kuriyama of America has been eminently successful in developing and marketing a complete line of thermoplastic hose and accessories. Their expansive product line consist of thermoplastic, rubber and metal hose products, along with accessories including couplings and fittings.
